Gemini Twinpact Booster 800Wx2, 18L Tankx2, 200L/min 2xEP230

Gemini Twinpact Booster 800Wx2, 18L Tankx2, 200L/min 2xEP230
Gemini Twinpact Booster 800Wx2, 18L Tankx2, 200L/min 2xEP230

Gemini Twinpact Booster 800Wx2, 18L Tankx2, 200L/min 2xEP230

Product Code: 2xEP230
Availability: In Stock
RM0.00
Loading ...
Share:

Model: 2xEP230 (Please email us for price. hupsheng88@gmail.com)

  • 100% Made in Italy.
  • 1 year warranty provided and distributed by Grundfos Pumps Sdn Bhd.
  • After the installation, pump MUST be set and tested by Grundfos technician to maximise its efficiency.
  • Additional charged will be incurred:
    (a) Klang Valley : RM600.00
    (b) West Malaysia : RM900.00
  • 50% Deposit is required for placing order.
  • Delivery duration : 10 to 20 days.

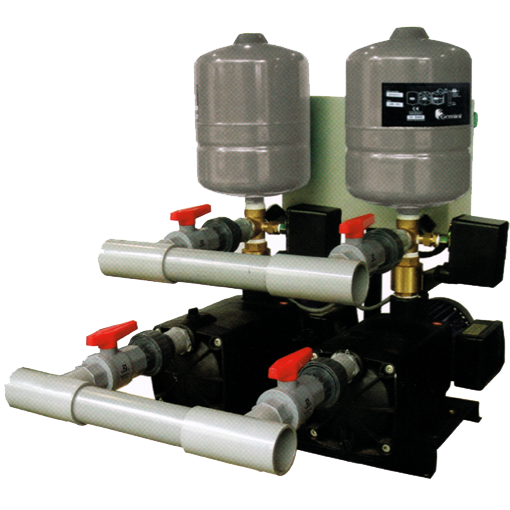

The Gemini Twin Pact pressure boosting is to provide a compact designed with two numbers of Gemini EP Self-Priming multistage pumps for impact solution and a wide range of application in:

  • Water supply system
  • Residential
  • Schools
  • General Industry
  • Agriculture Irrigation
  • Hostel
  • Office Building
  • All kinds of Low Pressure Boosting

Features

  • Optimum comfort with reliable pumping solution.
  • Lower energy consumption with 1 duty and 1 standby at low or normal demand.
  • Maintain required pressure at peak demand with 2 pumps operation at higher flow.
  • User friendly with plug and play capability complete package system.
  • Fully automatic control.
  • Anti corrosive and rust proof pump and piping of choice such as PVC pipe, GI pipe, Stainless Steel SS304.
  • Double sealing system between motor and hydraulic parts of the pump.

Specifications

Model of Gemini Pump   EP230 x 2 units
Motor Horse Power 800 Watt x 2
Butyl Rubber Tank 18 Liter x 2 units
Maximum Head 30 meters
Maximum Flow Single Pump : 100 L/min.
Double Pump : 200 L/min.
Number of Imperllers 3 Impellers x 2
Electric Power Supply   Single Phase 220 - 240VAC 50Hz
Current Rating (Total) 13 amp minimum
Power Supply Cable 3 x 2.5mm2 minimum
Connection Size Ø Suction : 1-1/2" (40mm)
Discharge : 1-1/2" (40mm)
Accessories



  • PVC class B piping
  • PVC valves
  • Brass fittings
