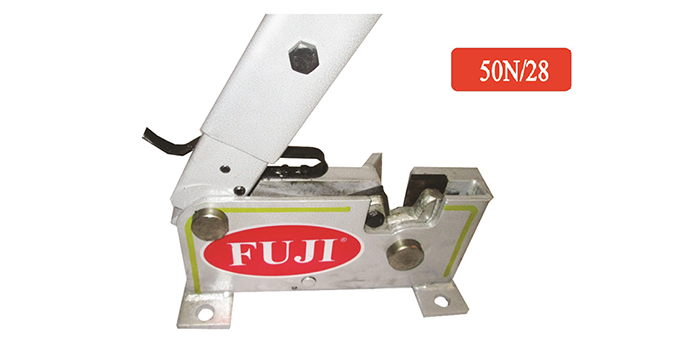

FUJI STEEL BAR CUTTER
FUJI STEEL BAR CUTTER

FUJI STEEL BAR CUTTER

Product Code: 50N/28
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

FEATURES

  •  This bar cutters are well dimensioned gear lever transmission which transmits the force directly to the shear part.
  •  The slide holding the shear blade is precisely guided between body plate of bar cutter to prevent it being forced out of line.
  •  This system not only keeps the frictional losses to a minimum but also gives the machines a high degree of efficiency so that optimum use i made of the operator’s effort
  •  The hand-levers on all models, when in basic position, are securely held by a retaining spring to prevent accidental falling.
  •  Bar Cutter is very economical and labour saving job-site equipment, indispensable modern building technology.



SPECIFICATIONS:

Model 50N22 50N/28 50N/32
Tensile Strength (kp/mm²)
(PSI)
45
65,000
145
65,000
145
65,000
Round (mm)
(inch)
22
7/8
28
13/32
32
11/4
Square (mm)
(inch)
20
25/32
24
15/16
26
1
Flat (mm)
(inch)
35 x 10
13/8 x 3/8
40 x 16
19/16 x 5/8
45 x 16
13/4 x 5/8
Size of Blade (mm)
(mm)
Length 35
Thickness 10
Length 45
Thickness 15
Length 50
Thickness 15
Weight (kg)
 13  29  39
Packing Size (mm) (Body)
(Handle)
355 x 200 x 400
1550 x 240 x 100
460 x 260 x 480
2030 x 240 x 100
500 x 260 x 480
2030 x 240 x 100
