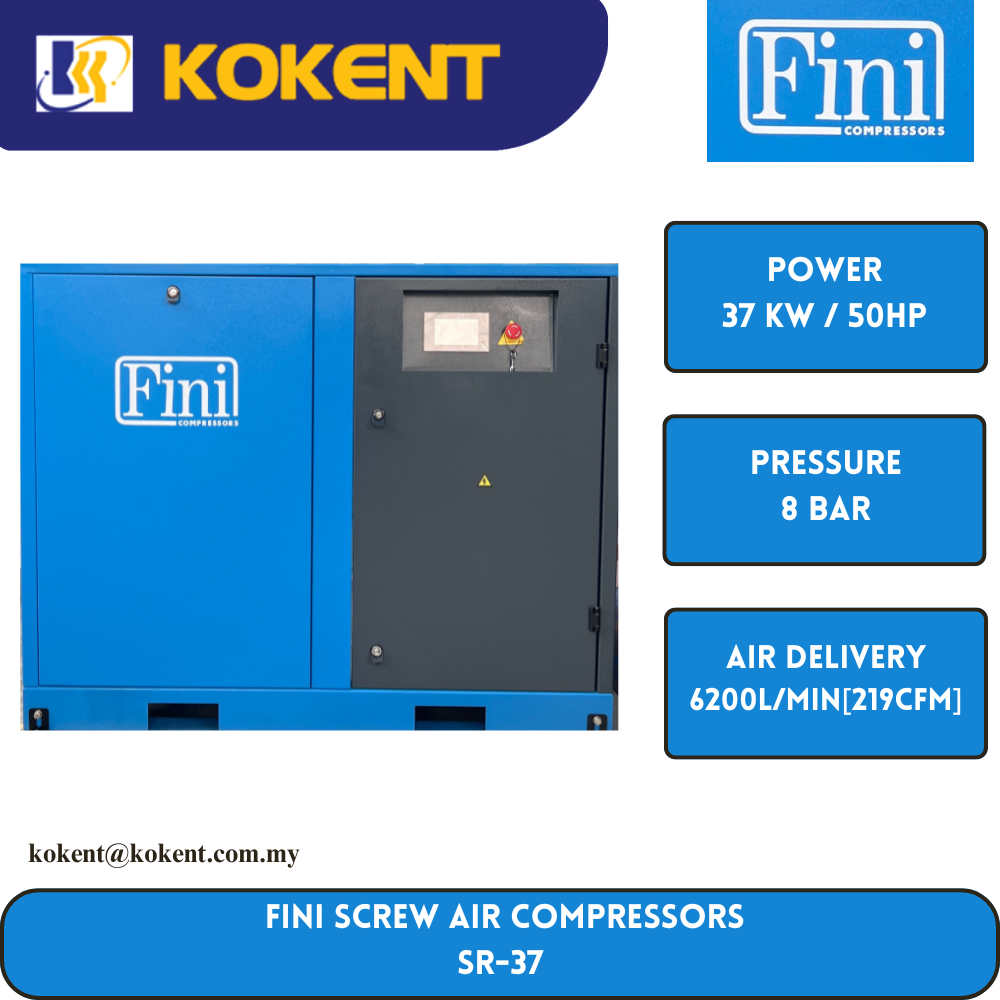

FINI SCREW AIR COMPRESSOR SR-37
Product Code: SR-37
Availability: Pre Order
FINI SCREW AIR COMPRESSOR SPECIFICATIONS
| MODEL | SR-22 | SR-37 | SR-55 | SR-75 | SR-90 | SR-110 |
| POWER (KW) | 22 KW | 37 KW | 55 KW | 75 KW | 90 KW | 110 KW |
| HORSEPOWER (HP) | 30 HP | 50HP | 75 HP | 100 HP | 125 HP | 150 HP |
| WORKING PRESSURE (KG/CM² /BAR) | 8 | 8 | 8 | 8 | 8 | 8 |
| FREE AIR DELIVERY (L/MIN/CFM) | 3400 (120 CFM) | 6200 (219 CFM) | 9200 (324.9 CFM) | 12500 (441.4 CFM) | 15000 (529.7 CFM) | 19000 (671 CFM) |
| NOISE (dBA) | 68±3 | 70±3 | 72±3 | 72±3 | 75±3 | 75±3 |
| WEIGHT (KG) | 400 KG | 550 KG | 1150 KG | 1300 KG | 1900 KG | 2200 KG |
| DIMENSION (MM) | 1350 x 895 x 1150 | 1500 x 1000 x 1195 | 1900 x 1300 x 1600 | 1800 x 1360 x 1665 | 2000 x 1535 x 1800 | 2100 x 1535 x 1800 |
| AIR OUTLET DIAMETER | 1” | 1 ½” | 2” | 2” | 2” | DN 65 |
