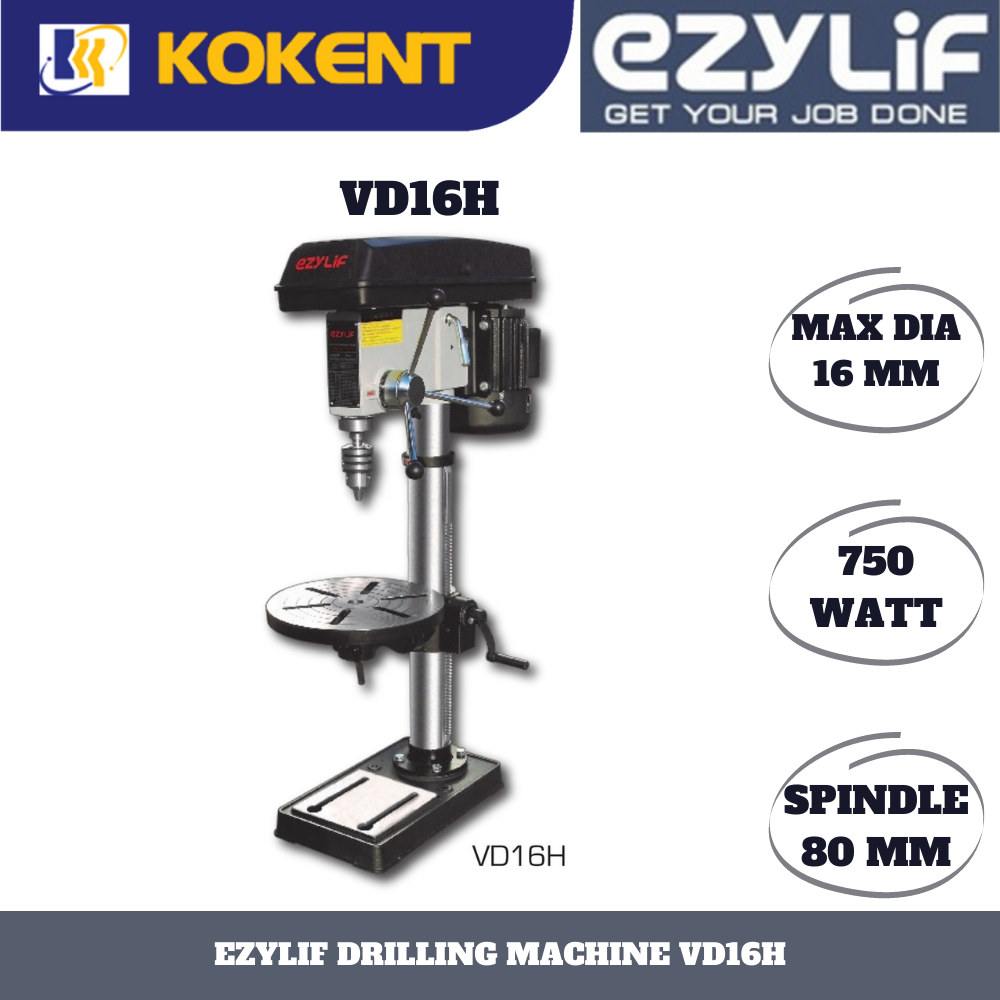

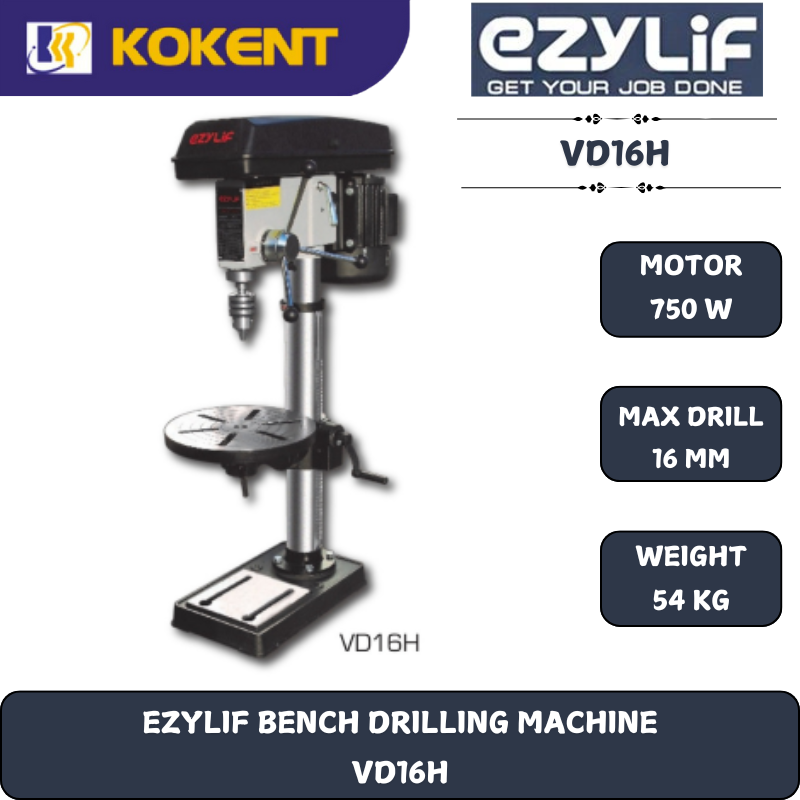

EZYLIF BENCH DRILLING MACHINE VD16H
EZYLIF BENCH DRILLING MACHINE VD16H

EZYLIF BENCH DRILLING MACHINE VD16H

Product Code: VD16H
Availability: In Stock
Loading ...
017 432 8850012 387 8850
Share:

Solid built,highly accurate bench drilling machine.

MODEL VD16H
MAX.DRILLING DIAMETER [MM] 16 [5/8"]
MOTOR POWER [W] 750
SPINDLE TRAVEL [MM] 80
CLASS OF SPEED 16
SPEED 50Hz [RPM] 180 - 2770
SPINDLE TAPER MT2
SPINDLE AXIS TO SURFACE OF COLUMN 162.5 MM
SPINDLE END TO SURFACE OF TABLE 450 MM
SPINDLE END TO SURFACE 630 MM
SWING [MM] 325
TABLE SIZE [MM] 420 X 250
BASE SIZE [MM] 420 X 250
COLUMN DIAMETER [MM] 72
HEIGHT [MM] 980
NET / GROSS WEIGHT [KG] 50 / 52
PACKING SIZE [MM] 780 X 450 X 280
