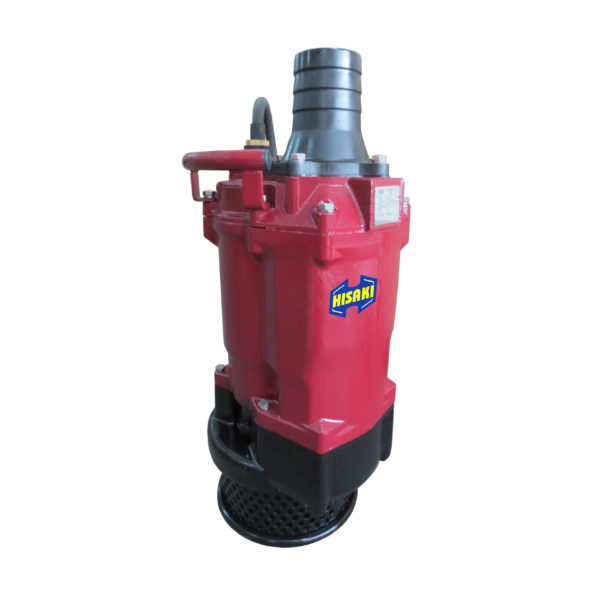

ELECTRIC SUBMERSIBLE PUMP HSP611
Product Code: ELECTRIC SUBMERSIBLE PUMP HSP611
Availability: Pre Order
SPECIFICATIONS
| Model | HSP611 | HSP615 |
| Outlet | 6" (150mm) | 6" (150mm) |
| Motor Power (HP/Kw) | 15 / 11 | 20 / 15 |
| Net Weight (kg) | 133 | 145 |
| Total Head (m) | 32 | 40 |
| Max Capaicty (m³) | 147 | 156 |
- Capacity up to 156m³/h.
- Head up to 49 meter.
- Motor insulation class F and IP68.
- Water Temperature up to 40°C.
FEATURES
- The body of motor and pump is made of right cast iron for long testing durability.
- Greatly increased maximum submersible depth due to mechanical seal to high pressure (0.5Mpa).
- Semi-open impeller made of high chrome alloy match with wear place (ductile iron).
- Effective motor cooling.
- Hermetically sealed motor with build in thermal protection.
