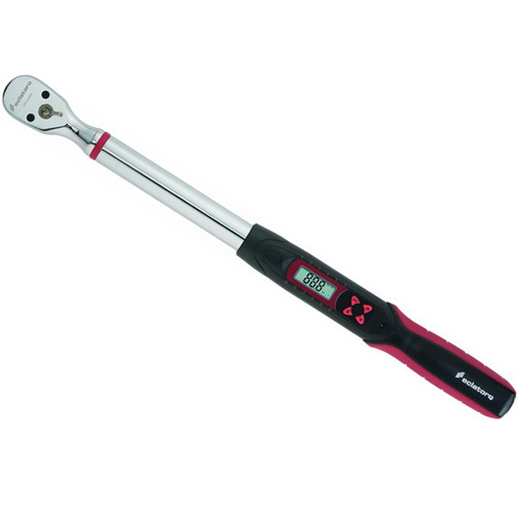

Eclatorq Digital Torque Wrench 1/2" 10-200Nm DK4-200BN

Product Code: DK4-200BN
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Model: DK4-200BN
1/2" Digital torque wrench from 10 to 200Nm.

Price inclusives 6%GST.

Features

  • Accuracy: ±2% (CW), ±3% (CCW)
  • 4 selections of measuring units
    a) N-m
    b) ft-lb
    c) in-lb
    d) kg-cm
  • 12 LED lights : 2 red & 10 green
  • 110 operating hours
  • 1 year Standby
  • Drop tested: 1meter
  • Vibration tested: 10G
  • Life time: 10000 cycles
  • Environmental Test: Passed
  • Electromagnetic Compability Test: Passed

Specifications

Accuracy ±2% (CW) ±3% (CCW)
Square Drive 1/2"
Max. Operation Range 200N-m / 147.5ft-lbs / 1770in-lb / 2041kg-cm
Measuring Range 10-200N-m / 7.4-147.5ft-lb / 88-1770in-lbs / 102-2041kg-cm
Resolution 0.1N-m / 0.01ft-lb / 1in-lbs / 1kg-cm
Data Memory Size 50
Button 5
Number of Presets 9
Operation Mode Peak Hold / Track
Unit Selection N-m, ft-lbs, in-lbs, kg-cm
Head Type Level Type Ratchet (36 Gear Teeth)
Battery AA x 1unit
Working Temperature -10° to 60°C
Storage Temperature -20° to 70°C
Humidity Up to 90% non-condensing
Length 530mm
Weight 1.34kg
