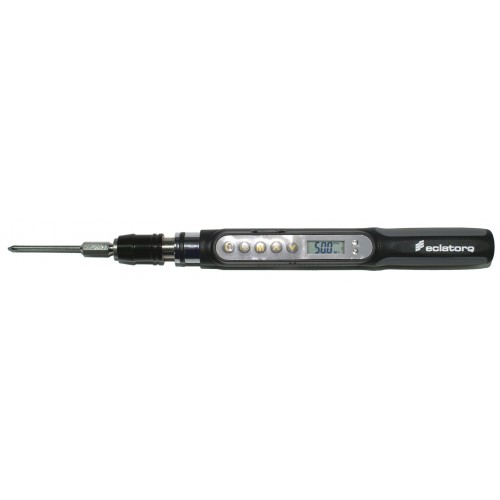

Eclatorq Digital Torque Screwdriver 10~200cNm 203mm SP-2BN

Eclatorq Digital Torque Screwdriver 10~200cNm 203mm SP-2BN
Eclatorq Digital Torque Screwdriver 10~200cNm 203mm SP-2BN

Eclatorq Digital Torque Screwdriver 10~200cNm 203mm SP-2BN

Product Code: SP-2BN
Availability: Pre Order
Loading ...
Share:

Model: SP-2BN
Digital torque screwdriver.

Price inclusives 6%GST.

Features

  • Accuracy: ±2.5% (CW)
  • 3 selections of measuring units
    a) N-m
    b) in-lb
    c) kg-cm
  • 2 Bright LED lights : 1 red & 1 green
  • 12 hours operating hours
  • 1 year Standby
  • Drop tested: 1meter
  • Vibration tested: 10G
  • Life time: 10000 cycles
  • Environmental Test: Passed
  • Electromagnetic Compability Test: Passed

Specifications

Accuracy ±2.5% (CW) ±3.5% (CCW)
Bit End Fitting 1/4"
Max. Operation Range 200cN-m / 17.7in-lbs / 20.41kg-cm
Measuring Range 10-200cN-m / 0.88-17.7in-lbs / 1.02-20.41kg-cm
Resolution 0.1cN-m / 0.01in-lbs / 0.01kg-cm
Data Memory Size 50
Button 5
Number of Presets 9
Operation Mode Peak Hold / Track
Unit Selection cN-m, in-lbs, kg-cm
Head Type Autolock Bit Holder
Battery AAA x 1unit
Working Temperature -10° to 60°C
Storage Temperature -20° to 70°C
Humidity Up to 90% non-condensing
Length 203mm
Weight 0.26kg
