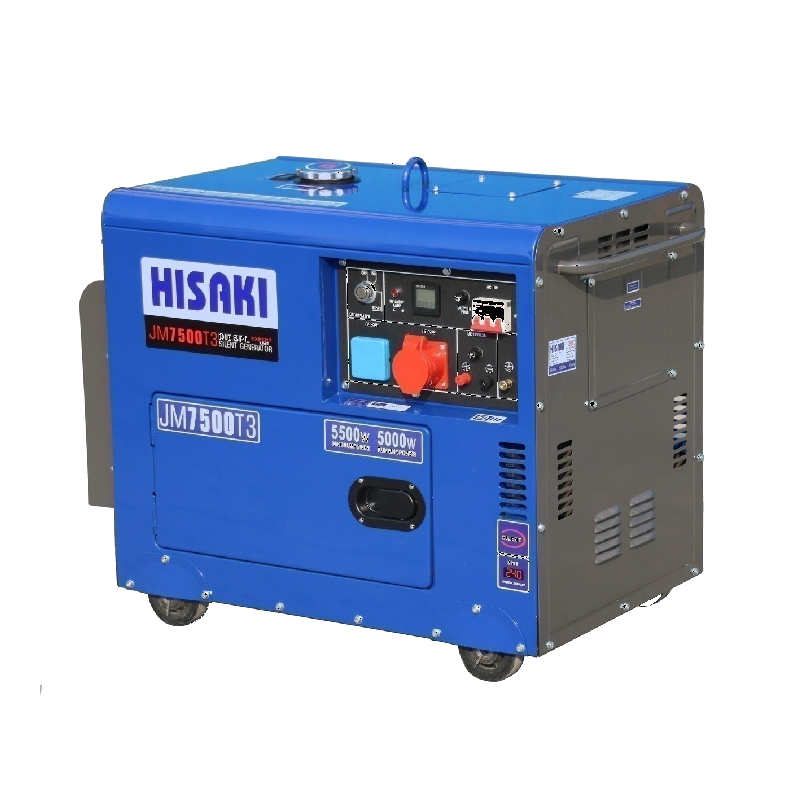

DIESEL GENERATOR JM7500T3

DIESEL GENERATOR JM7500T3

DIESEL GENERATOR JM7500T3

Product Code: DIESEL GENERATOR JM7500T3
Availability: Pre Order
Loading ...
Share:

Specification

MODEL                                                                         JM7500T3
Rated Frequency (Hz) 50
Rated Output (kW) 5
Max Output (kW) 5.5
Rated Voltage (V) 240/415
Phase No. Three Phase
Power Factor (cos) 0.8

Engine Model JM188FAE
Engine Type Single Cylinder, Vertical, 4-Stroke, Air-Cooled Diesel Engine, Direct Injection
Bore * Stroke (mm) 88 x 75
Displacement (L) 0.456
Rated Power kW (r/min) 6.6
Lube Capacity (L) 1.65
Fuel Consumption (g/Kw.h) ≤274
Fuel Tank Capacity (L) 15
Structure Type Silent
Packing Dimension (mm) 920 x 540 x 760
Starting System Electric Start
