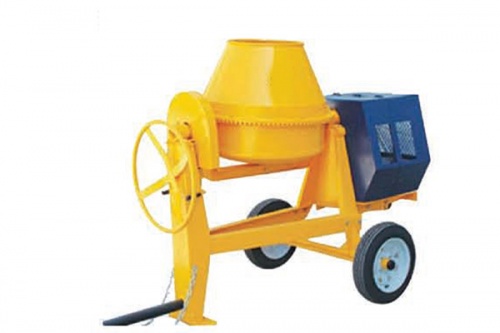

Concrete Mixer
Concrete Mixer

Concrete Mixer

Product Code: CNJB260-350
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Product Detail

CNJB260-350

Model CNJB260 CNJB350
Engine Electric Motor Chinese Diesel 178FS Electric Motor Chinese Diesel 178FS
Power W 2.2(3.0) 4.4(6.0) 2.2(3.0) 4.4(6.0)
Weight kg 243(536) 253(558) 273(602) 283(624)
Feed Capacity L 260 350
Discharge Capacity L 170 260
Mixing Material max.Dia cm(in) 3.5(1.4) 3.5(1.4)
Drum Rotation Speed rpm 30 30
Package Dimension cm 196*90*110*(77*35*43) 196*90*110*(77*35*43)

JZC200&JZC350

Model JZC200 JZC350
Feed Capacity L 320 560
Discharge Capacity L 200 360
Mixing Material Max. Dia mm 60 60
Motor Power kW 4 5.5
Productivity 6-8 10-14
Water Pump Power kW 0.55 0.55
Driving Speed (Max) km/h 20 20
Weight kg 850 1150
Drum Rotation Speed rpm 18 14
Appearance Dimension (L*W*H) mm 2380*2060*2545 2765*2140*3000

JZR200-350

Model JZR200 JZR350
Feed Capacity L 320 560
Discharge Capacity L 200 350
Mixing Material Max. Dia mm 60 60
Diesel Engine DLK195, 10.3kW, 2200rpm, electric starter DLK195, 10.3kW, 2200rpm, electric starter
Productivity 5-7 10-14
Water Pump Power kW 0.55 0.55
Driving Speed (Max) km/h 20 20
Weight kg 1050 1350
Drum Rotation Speed rpm 18 17
Appearance Dimension (L*W*H) mm 2180*2179*2800 2760*2160*2140*2900

JZC500

Model JZC500
Feed Capacity L 800
Discharge Capacity L 500
Productivity m3/h 18-20
Motor Power kW 5.5
Driving Speed(Max) km/h 20
Mixing material Max.Dia mm 60
Drum Rotation Speed kW 0.75
Weight kg 1600
Appearance Dimension(L*W*H) mm 5000*2300*2800
