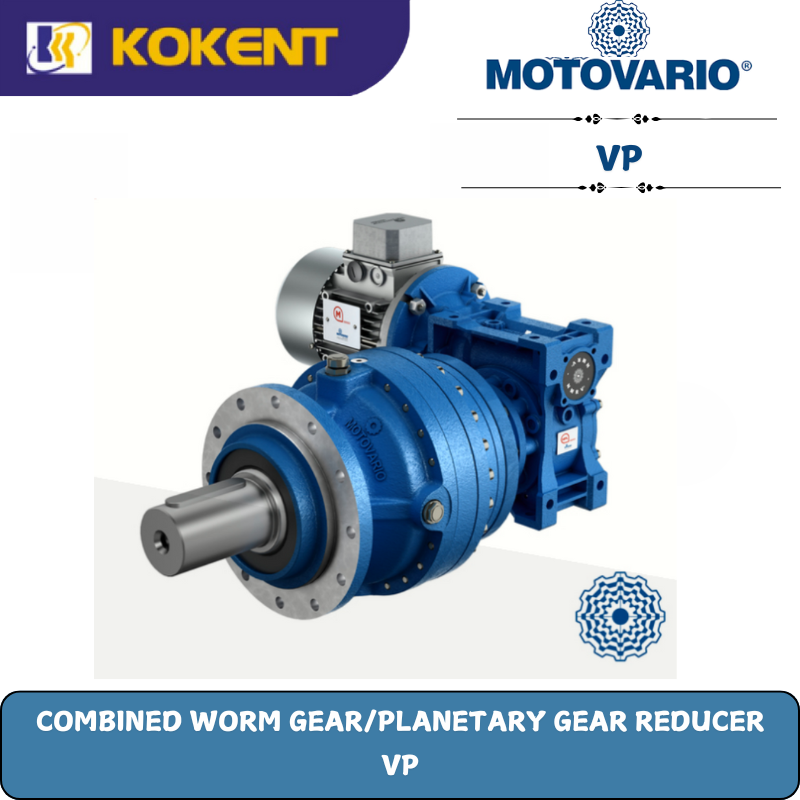

Combined worm gear/planetary gear reducers

VP

VP gear reducers are an ideal combination of worm gear reducer technology and planetary gear technology, perfectly embodying Motovario’s expertise at its best.

Thanks to this gear train configuration, VP gear reducers offer an effective solution to those looking for a compact and versatile option combined with high modularity, thus allowing a wide range of output module versions with high reduction ratios in a helical bevel gear reducer layout.

Available in sizes VP P613 to VP P1183

Characteristics

• Gear reducers combined with worm gear and modular planetary stages
• 3 total reduction stages
• Reduction ratios between 300 and 3100
• Full range including 12 sizes, with a nominal performance ranging from 1,000 to 100,000 Nm
• Available in versions: provision for motor coupling (VP), with torque limiter (VPL)
• Available for assembly in flanged version or with feet
• High-strength spheroidal cast iron output modules, optimised with FEM analysis
• Case-hardened steel gears with optimised profiles
• Gear load capacity calculated according to ISO 6336-2016 and bearings according to ISO 281
• High resistance to radial loads
• Eyebolt setup for all sizes, for simple and safe handling
• Vertical assembly positions with no need for forced lubrication
