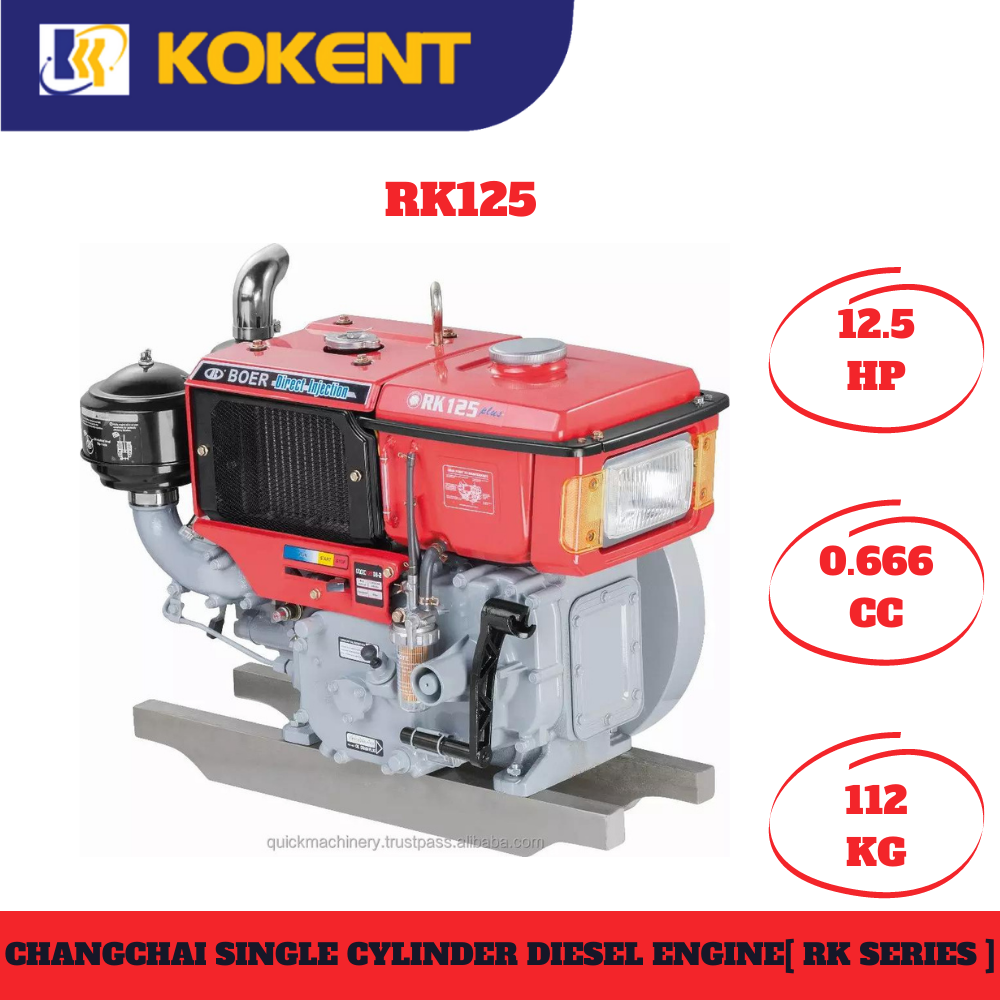

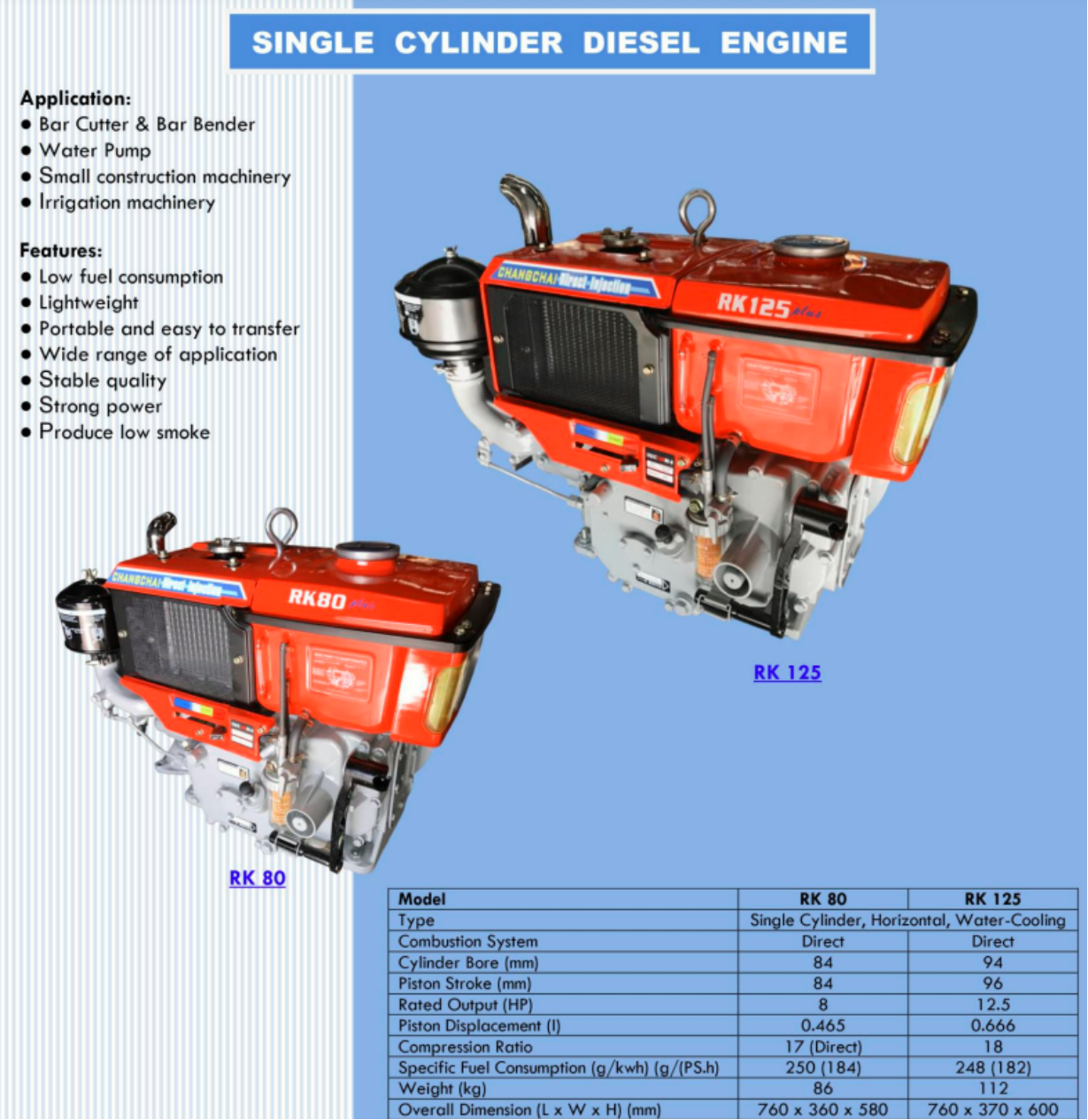

CHANGCHAI SINGLE CYLINDER ENGINE RK-125 12.5HP

Model

RK 80

RK 125

Type

Single Cylinder, Horizontal, Water-Cooling

Combustion System

Direct

Direct

Cylinder Bore (mm)

84

94

Piston Stroke (mm)

84

96

Rated Output (HP)

8

12.5

Piston Displacement (I)

0.465

0.666

Compression Ratio

17 (Direct)

18

Specific Fuel Consumption (g/kwh) (g/(PS.h)

250 (184)

248 (182)

Weight (kg)

86

112

Overall Dimension (L x W x H) (mm)

760 x 360 x 580

760 x 370 x 600
