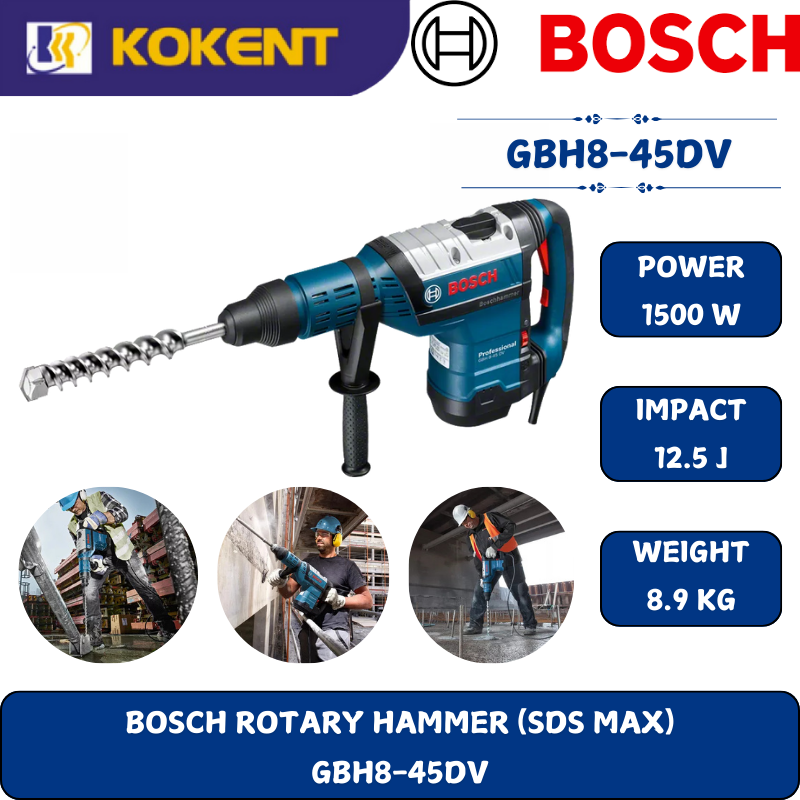

GBH 8-45 DV Professional

Rotary Hammer with SDS max

Powerful 1500 watt at low vibrations

• User buys a GBH 8-45 DV Professional and gets various accessories for free!
• Peak performance in Drilling and Chiselling
• Three-way Vibration Control System, Turbo Power Function

Functions & key features

Technical data

Performance data

Impact rate at rated speed : 1,380 – 2,760 bpm

Rated speed : 150 – 305 rpm

Additional data

Rated input power : 1500 W

Impact energy : 12.5 J

Tool holder : SDS max

Weight  :8.9 kg

Drilling range

Drilling dia. concrete, hammer drill bits : 12 – 45 mm

Opt. appl. range concrete, hammer drill bits : 20 – 40 mm

Drilling dia. concrete, breakthrough drill bits : 80 – 80 mm

Drilling diameter in concrete with core cutters : 125 – 125 mm

Total vibration values (Hammer drilling in concrete)

Vibration emission value ah : 8 m/s²

Uncertainty K : 1.5 m/s²

Total vibration values (Chiselling in concrete)

Vibration emission value ah : 7 m/s²

Uncertainty K : 1.5 m/s²

Hammer drilling in concrete

Vibration emission value ah : 8 m/s²

Uncertainty K : 1.5 m/s²

Chiselling in concrete

Vibration emission value ah : 7 m/s²

Uncertainty K : 1.5 m/s²
