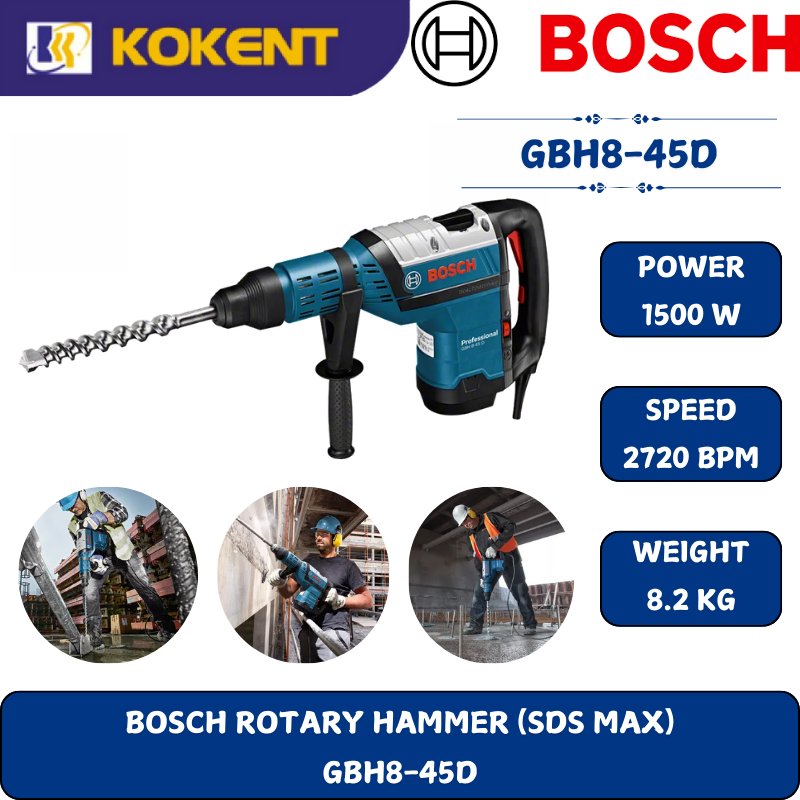

GBH 8-45 D Professional

Rotary Hammer with SDS max

Powerful 1,500 watt and highest sturdiness!

• Top performance when drilling and chiselling thanks to 1500 watt motor and 12.5 joules of single impact energy
• Exceptional durability thanks to robust components
• Automatic switch lock for the best convenience in continuous chiselling applications

Functions & key features

Technical data

Performance data

Impact rate at rated speed :1,380 – 2,720 bpm

Rated speed : 150 – 305 rpm

Additional data

Rated input power : 1500 W

Impact energy : 12.5 J

Tool holder : SDS max

Weight : 8.2 kg

Drilling range

Drilling dia. concrete, hammer drill bits  :12 – 45 mm

Opt. appl. range concrete, hammer drill bits : 20 – 40 mm

Drilling dia. concrete, breakthrough drill bits  : 80 – 80 mm

Drilling diameter in concrete with core cutters : 125 mm

Total vibration values (Hammer drilling in concrete)

Vibration emission value ah : 18.5 m/s²

Uncertainty K : 1.5 m/s²

Total vibration values (Chiselling in concrete)

Vibration emission value ah : 14 m/s²

Uncertainty K : 1.5 m/s²

Hammer drilling in concrete

Vibration emission value ah : 18.5 m/s²

Uncertainty K : 1.5 m/s²

Chiselling in concrete

Vibration emission value ah : 14 m/s²

Uncertainty K : 1.5 m/s²
