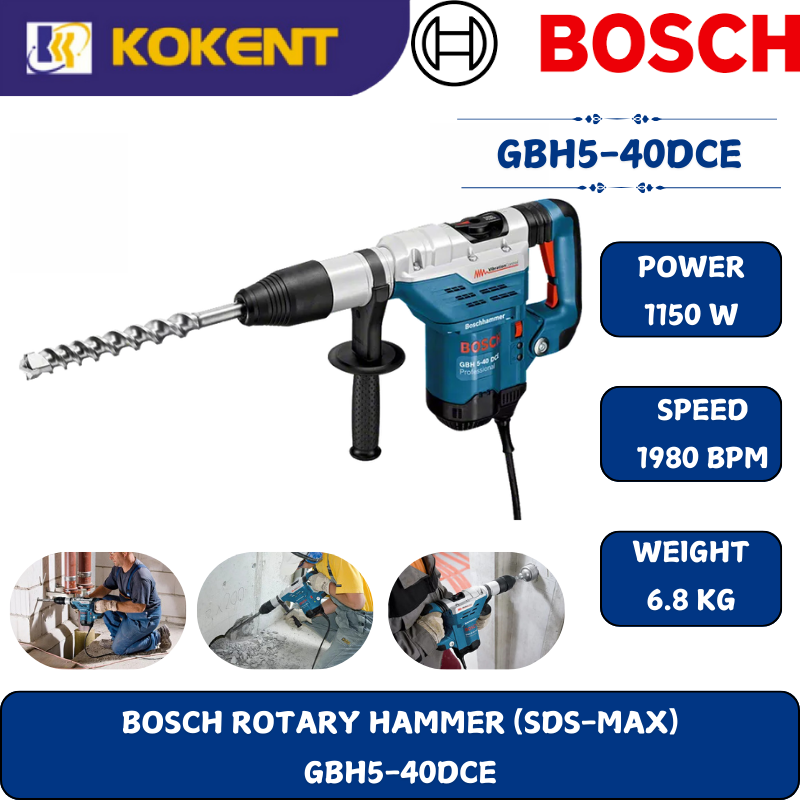

GBH 5-40 DCE Professional

Rotary Hammer with SDS max

The fast all-rounder with Vibration Control

• Fastest drilling rate in its class due to 1150 W motor and powerful hammer mechanism
• SDS max comfort for easy and fast tool changes with one hand
• Vibration Control (10 m/s² for drilling, 8 m/s² for chiselling) ensures convenient working, even in time-intensive applications

Functions & key features

Technical data

Performance data

Impact rate at rated speed : 1,500 – 2,980 bpm

Rated speed : 165 – 330 rpm

Additional data

Rated input power : 1150 W

Impact energy : 8.8 J

Tool holder : SDS max

Voltage, electrical : 240 V

Weight : 6.8 kg

Drilling range

Drilling dia. concrete, hammer drill bits : 12 – 40 mm

Opt. appl. range concrete, hammer drill bits : 18 – 32 mm

Drilling dia. concrete, breakthrough drill bits : 45 – 55 mm

Drilling diameter in concrete with core cutters : 40 – 90 mm

Total vibration values (Hammer drilling in concrete)

Vibration emission value ah : 13.5 m/s²

Uncertainty K : 1.5 m/s²

Total vibration values (Chiselling in concrete)

Vibration emission value ah : 10.5 m/s²

Uncertainty K : 1.5 m/s²

Hammer drilling in concrete

Vibration emission value ah : 13.5 m/s²

Uncertainty K : 1.5 m/s²

Chiselling in concrete

Vibration emission value ah : 10.5 m/s²

Uncertainty K : 1.5 m/s²

* You can find more information about the deviations in the following link: Technical features of products

GBH 5-40 DCE Professional: Further information

Product Highlights

The GBH 5-40 DCE Professional is uniquely designed within Bosch’s SDS max corded rotary hammer category for comfortable handling and reduced user fatigue in extensive applications. Its Vibration Control and lightweight design enable effortless and continuous work in time-intensive tasks. The rotary hammer is also built for durability, featuring robust metal components and an optimised lubrication system. Its strong motor enables the delivery of 8.8 J of impact energy for a fast drilling progress and high material removal rate.
