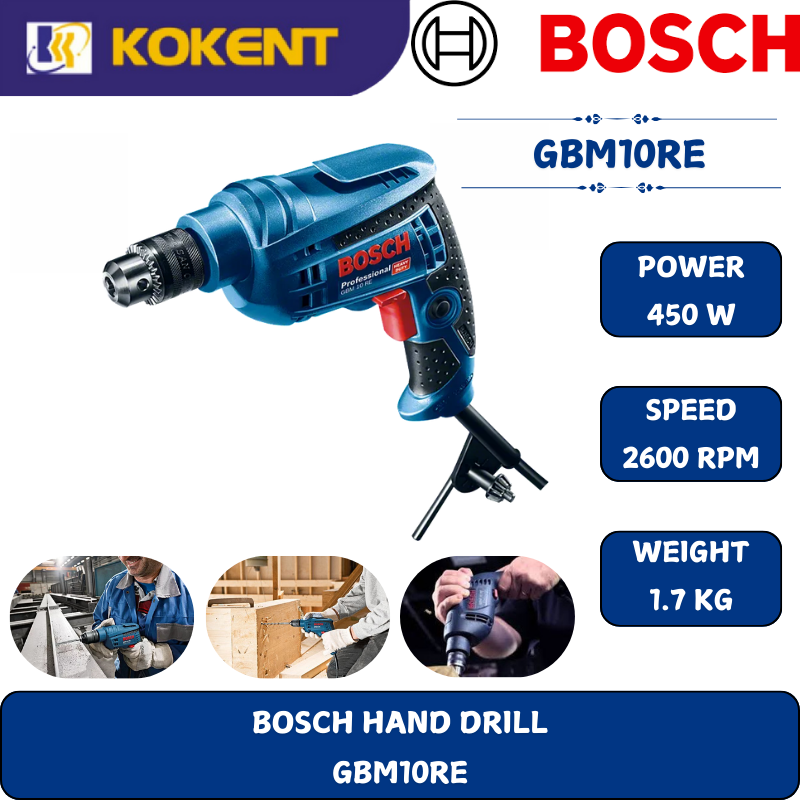

GBM 10 RE Professional

Drill

The powerful and compact tool

• Powerful motor, ideal for drilling holes up to 10 mm in diameter in metal
• Drill spindle fixed in bearing for high precision
• Compact design and low weight for optimum handling in medium-duty drilling applications

Functions & key features

Technical data

Additional data

Rated input power : 450 W

Bit holder : 1/2"

Drill chuck, version : Keyed chuck

No-load speed, 1st gear : 0 – 2,600 rpm

Power output : 360 W

Weight : 1.7 kg

Rated speed : 1,676 rpm

Rated torque : 20.0 Nm

Drill spindle connecting thread : 1/2"

Chuck capacity, min./max. : 1 – 10 mm

Drilling range

Drilling diameter in wood : 25 mm

Drilling diameter in steel : 10 mm

Drilling diameter in aluminium : 10 mm

Total vibration values (Drilling in metal)

Vibration emission value ah : 1.5 m/s²

Uncertainty K : 4.8 m/s²

Total vibration values (Screwdriving)

Vibration emission value ah : 1.5 m/s²

Uncertainty K : 2.8 m/s²

Drilling in metal

Vibration emission value ah : 1.5 m/s²

Uncertainty K : 4.8 m/s²

Screwdriving

Vibration emission value ah : 1.5 m/s²

Uncertainty K : 2.8 m/s²
