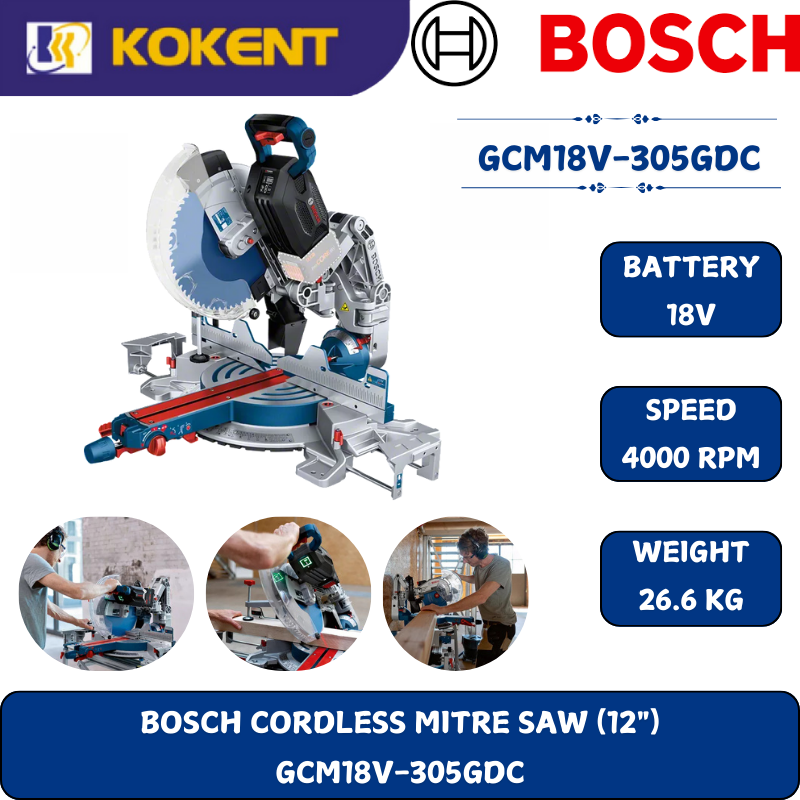

GCM 18V-305 GDC Professional

** WITHOUT BATTERY & CHARGER **

Cordless Mitre Saw BITURBO

The combination of impressive cutting performance and full cordless flexibility

• Brushless motor powered by ProCORE18V battery delivers cordless power equal to 2000W corded mitre saw
• HMI and connectivity for battery status check; speed selection including ECO mode
• Tool-less blade change; upfront bevel control; motor brake; space-saving glide arm for safe and convenient operation

Functions & key features

Technical data

Additional data

Battery voltage : 18.0 V

Saw blade diameter : 305 mm

Mitre setting : 52 ° L / 60 ° R

Bevel setting : 47 ° L / 47 ° R

Weight : 26.6 kg

Cutting capacity, 0° : 104 x 341 mm

Cutting capacity 0° with spacer (max. vertical) : 120 x 200 mm

Cutting capacity 0° with spacer (max. horizontal) : 45 x 400 mm

Cutting capacity, 45° mitre : 104 x 240 mm

Cutting capacity, 45° bevel : 40 x 341 mm

Tool dimensions (width x length x height) : 565 x 630 x 790 mm

No-load speed : 2,550 – 4,000 rpm

Saw blade bore diameter : 30 mm
