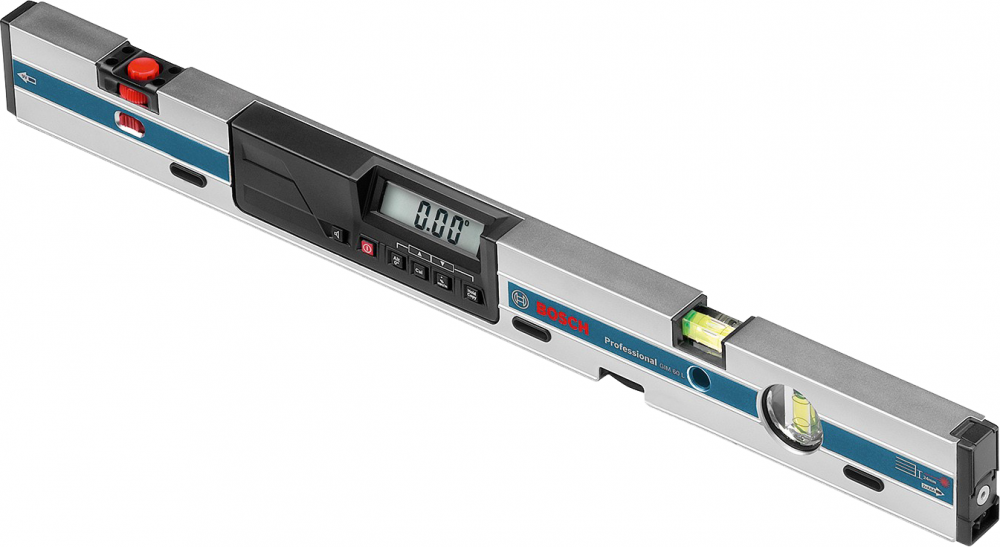

Bosch Digital Inclinometer Laser Point 0–360° 600mm 1kg GIM60L
Product Code: GIM60L
Availability: In Stock
Model: GIM60L
For laser-accurate incline transfer over longer distances.
Price inclusives 6%GST.
Features
- Integrated point laser for incline measurement up to 30 m length
- Strong magnets and two straps for securely fastening the instrument to workpieces
- Incline mechanism for fine adjustment on uneven surfaces
- Any value can be set as alternative 0°
- Angles can be adjusted manually to enable easy transfer
- Audio signal guides the user to the desired angle without having to look at the display
- Units of measure can be switched
- Display rotates automatically to make it easier to read
Specifications
| Length | 600mm |
| Measurement Range |
0 – 360° (4 x 90°) |
| Electronics Measurement Accuracy 0°-90° |
± 0.05° |
| Electronics Measuring Accuracy at 1°-89° | ± 0.2° |
| Measurement Accuracy, vials | ± 0.1° |
| Working Range (Laser) | 30 meters |
| Power Supply, inclination measurement | 1 x 9V 6LR61 |
| Power Supply, Laser Mode | 2 x 1.5VLR03 |
| Operating Duration, inclination measurement | Approximately 300 hours |
| Operating Duration, laser mode | 20 hours |
| Automatic Deactivation Facility | Approximately 30 minutes |
| Weight | 0.9kg |
| Dimensions (W x H) | 27mm x 59mm |
| Laser Type | 635nm, <1 mW |
| Laser Range | 30 meters |
| Laser Class | 2 |
| Levelling Accuracy of Laser | ± 0.05 mm/m |
| Units of Measurement | °, %, mm/m |
| Tripod Thread | 1/4" |
Standard Accessories
- Battery 9V 6LR61 (Block) x 1
- Fastening straps x 2
- 1.5V LR03(AAA) batteries x 2
