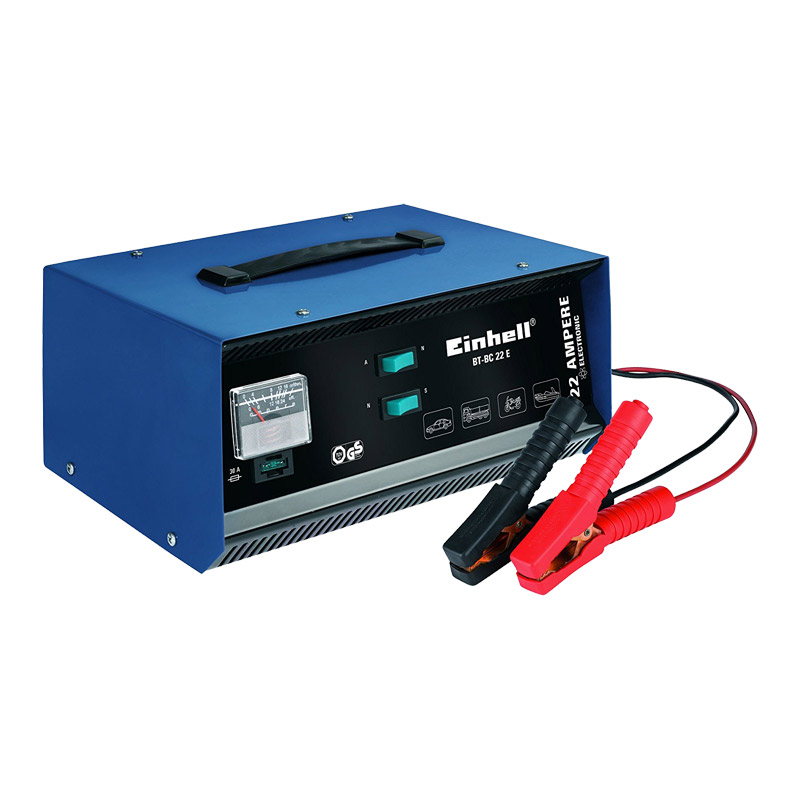

EINHELL Battery Charger BT-BC 22 E

Battery Charger BT-BC 22 E

Powerful, automatic 12 V charger electronically controlled with switch for normal and rapid charging as boosting support.

The amperage can be seen on the built-in ammeter. Strong insulated pole clips warrants an optimal connection to the battery poles.

The unit can be transported easily with the carrying handle.

On switch position “A” the charging electronic provide a charging voltage of 14.1 V (WU-charging curve). Overloading of the connected battery is not possible and the charging procedure does not have to be supervised.

The battery charger is therefore ideal for charging of maintenance-free batteries and topping up of seldom used batteries.

On switch position “N” the device works without the electronic charging voltage limitation (W-charging curve) with higher power.

A change from normal to rapid charge can be made pos. “A” in automatic operation (charge controlled) as well as in normal charging pos. “N” without automatic charging control.

Features

1. All-insulated construction
2. Charging electronic
3. Sheet steel housing
4. Carrying handle
5. Switch for automatic and normal charging
6. Switch for normal and rapid charging
7. Built-in ammeter
8. Overload- and fals poling- and short-circuit
9. protection
10. Mains cable with europe plug
11. Charging leads with sturdy pole clamps
