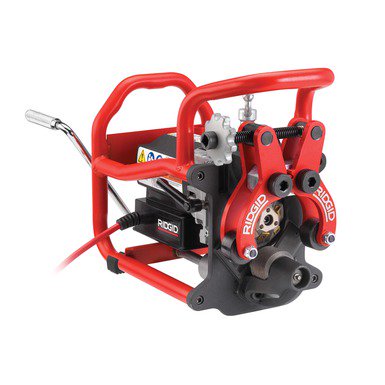

RIDGID B-500 Transportable Pipe Beveller
RIDGID B-500 Transportable Pipe Beveller

RIDGID B-500 Transportable Pipe Beveller

Product Code: B-500
Availability: In Stock
Loading ...
017 432 8850012 387 8850
Share:

Features

Speed

  • Set-up and bevel 10" diameter schedule 40 pipe in 45 seconds!
  • Pipe is cool to touch immediately following bevelling.

Consistency

  • Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes.
  • Adjustable land width from 0" to 3/16" to fit welders’ requirements.
  • Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.

Simplicity

  • Fast to set-up and operate.
  • Patent-pending clamp system firmly secures tool to the pipe.
  • Speed monitoring with led indicators for optimal cutter performance.
  • Spark free operation.

Specifications

Capacity 4” pipe and larger, flat plate.
Pipe Wall/ Plate Thickness Min 0.188" (4.8 mm)/Max 0.50" (12.7 mm).
Models Equipped with – 37.5°; 30° or 45° (with Optional Cutter Heads).
Cutter Head Rated for most steel & stainless steel*.
Size 15.8 in. (401 mm) L x 11.5 in. (292 mm) W x 13.3 in. (338 mm) H.
Land Width 0" - 3/16" (4.8 mm) in approximately 1/32" (0.8 mm) increments.
Motor Type Universal single-phase.
Motor RPM 950 (no load).
Body Steel frame
  * Beveller cutting head and inserts are optimized for standard A53 mild steel pipe. Reduced insert life can be expected on other materials.
