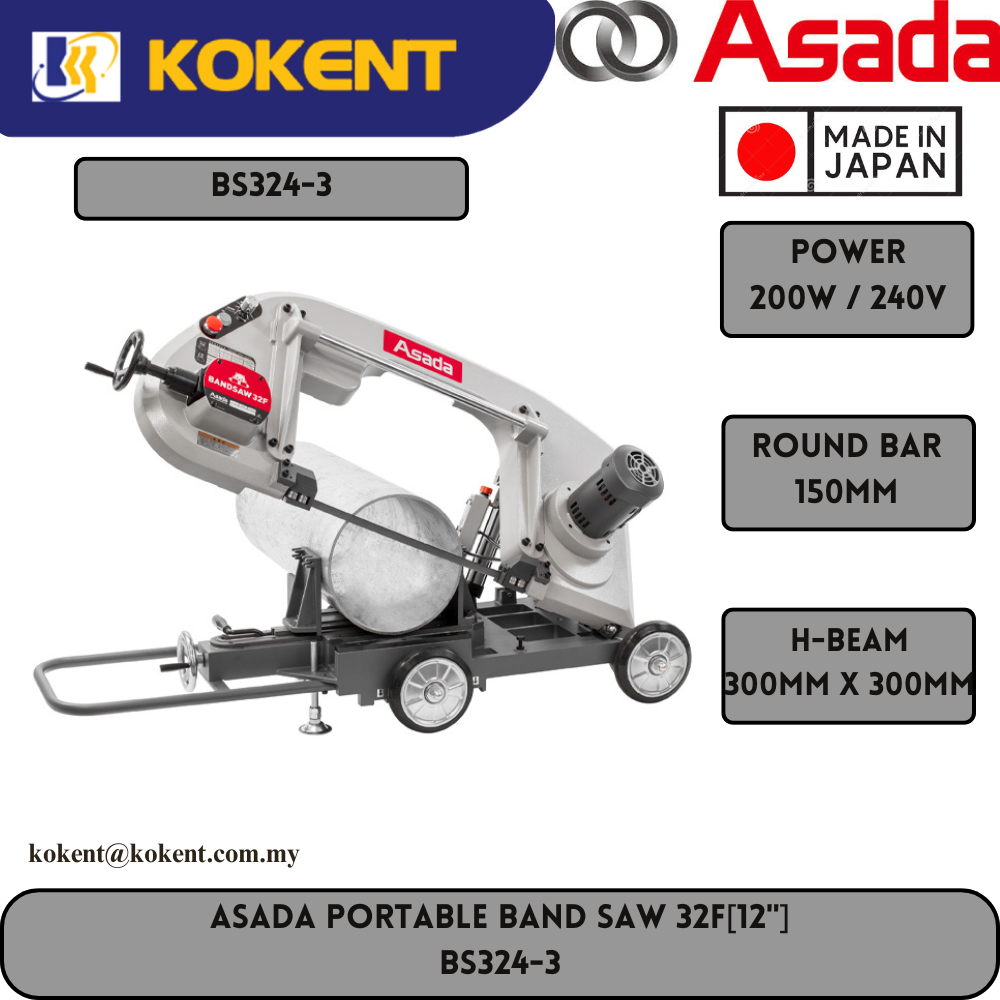

ASADA PORTABLE BAND SAW 32F [12"] BS324-3

Product Code: BS324-3
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Up to φ320mm, dry cutting, portable

For cutting steel pipe, H-Beam, square pipe, round bar

Oil dumper system enables right angle cutting



SPECIFICATIONS

Item BAND SAW 32F
Code No. BS324-3
Load adjustment Oil dumper
Cutting capacity Steel pipe 90°：ø320mm ／ 45°：ø195mm
Cutting capacity H-Beam 90°：300mm×300mm ／ 45°：200mm×200mm
Cutting capacity Square pipe 90°：□300mm ／ 45°：□200mm
Cutting capacity Round bar 90°：ø150mm
Weight 114kg
Motor 220-240V, 300W
Standard accessories 10TPI HSS 1pce: Code No.BS905

Voltage made to order.

FEATURES

  • Anyone can cut material accurately and precisely

    Easy to set up.

    #

  • Safety cutting

    Sparks never come out from blade.

    #

  • Auto-cut off function

    Machine is turned off automatically after cutting.

    #

  • Accurate cutting feed adjustment

    Easy to adjust cutting load for various materials.

  • Miter cut (Flat vise)

    Versatile cutting machine.

    #

  • Straight cut

    Accurate cutting at right angle and clean cutting surface. No need finishing.

    #
