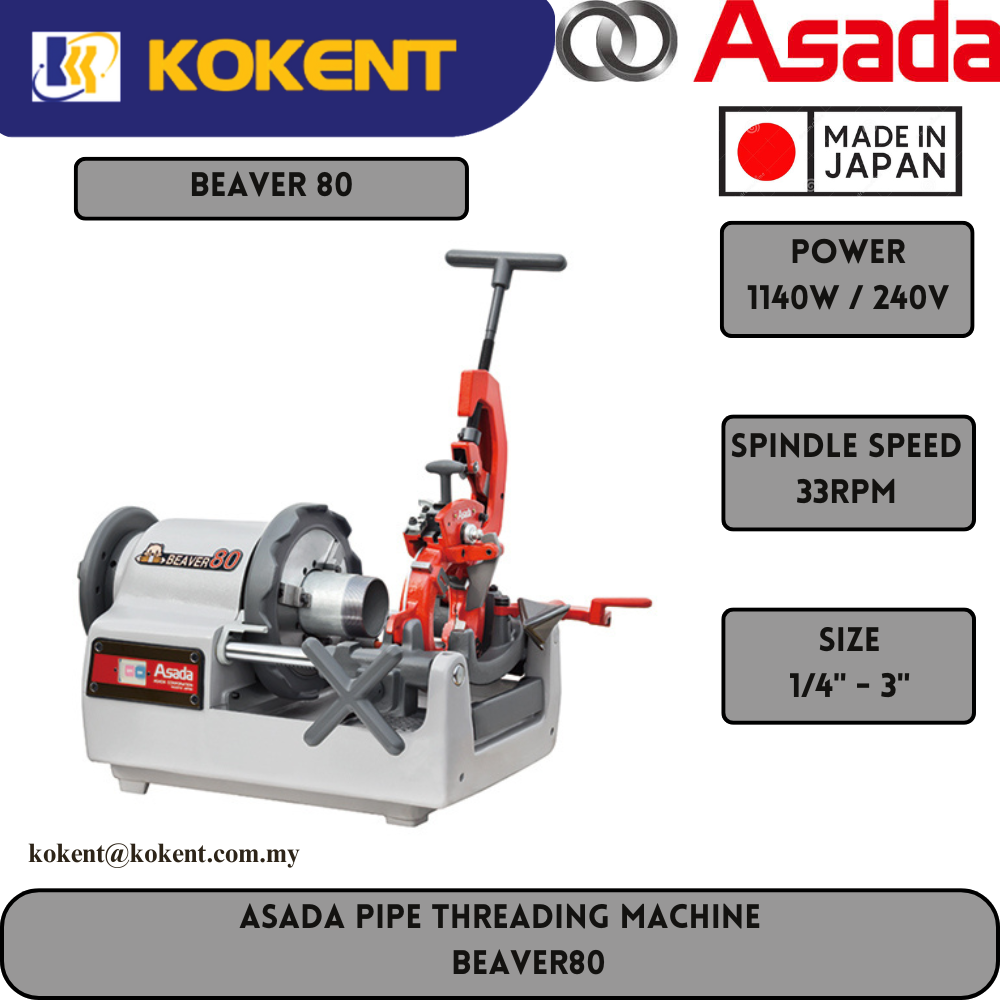

ASADA PIPE THREADING MACHINE BEAVER80

Product Code: BEAVER80.

Availability: Pre Order

Pipe：PT1/4"~3" (PT1/4"～3/8" ※With optional accessories)

Bolt：W3/8"～2"・M10～42 ※With optional accessories

Conduit：C19～75・PF1/2"～3" ※With optional accessories

SPECIFICATIONS

Item	Code No.	Weight	Standard accessories	Threading capacity	Spindle speed	Motor
BEAVER 80 BSPT MANUAL	BE80S	74kg	MANUAL DIE-HEAD： 1/2"～2", 2"～3" DIES： BE1/2"～3/4", BE1"～2", PT 2"～3" THREADING OIL WHITE 4L (1CAN)	PT1/4"～3"	33min^－1	220-240V, 1,140W
BEAVER 80 BSPT AUTO	BE8AS	74kg	BEAVER AUTO DIE-HEAD： 1/2"～2", 2½"～3" DIES： BE1/2"～3/4", BE1"～2", AT2½"～3" THREADING OIL WHITE 4L (1CAN)	PT1/4"～3"	33min^－1	220-240V, 1,140W
BEAVER 80 NPT MANUAL	BE81S	74kg	MANUAL DIE-HEAD： 1/2"～2", 2"～3" DIES： BE1/2"～3/4", BE1"～2", PT 2"～3" THREADING OIL WHITE 4L (1CAN)	PT1/4"～3"	33min^－1	220-240V, 1,140W
BEAVER 80 NPT AUTO	B81AS	74kg	BAEVER AUTO DIE-HEAD： 1/2"～2", 2½"～3" DIES： BE1/2"～3/4", BE1"～2", AT2½"～3" THREADING OIL WHITE 4L (1CAN)	PT1/4"～3"	33min^－1	220-240V, 1,140W

Accurate threading

Die-head with automatic profiling system and high durable dies.
Slip-free chucking

Easy-to-grip outer ring and wider jaws grab material firmly.
High power motor

Motor rotation is hard to drop even under poor electric condition.
Superior sharpness & durability

Cutter & reamer blade are designed with most suitable shape.
High durability spindle

Supported by high precision ball bearing.
Stable oil supply

High capacity pump maintains sufficient oil flow even at low rotation.

Pipe Cutter Blade
Carbon Brushes
ROLL GROOVER 640

For on-site grooving works. Can be used with a threading machine.
Legs for Threading Machine
Automatic Die-Head

DIE-HEAD for BEAVER
Manual Die-Head

DIE-HEAD for BEAVER
Dies for Pipe Thread
Dies for Pipe Thread (High Durability)
Dies for Bolt Thread

More detail
Dies for Parallel Pipe(Conduit) Thread
Nipplemax
Nipple Chuck
Threading Oil White
Threading Oil Red
Threading Oil Cool
Pipe Support

For accurate threading with long pipes
