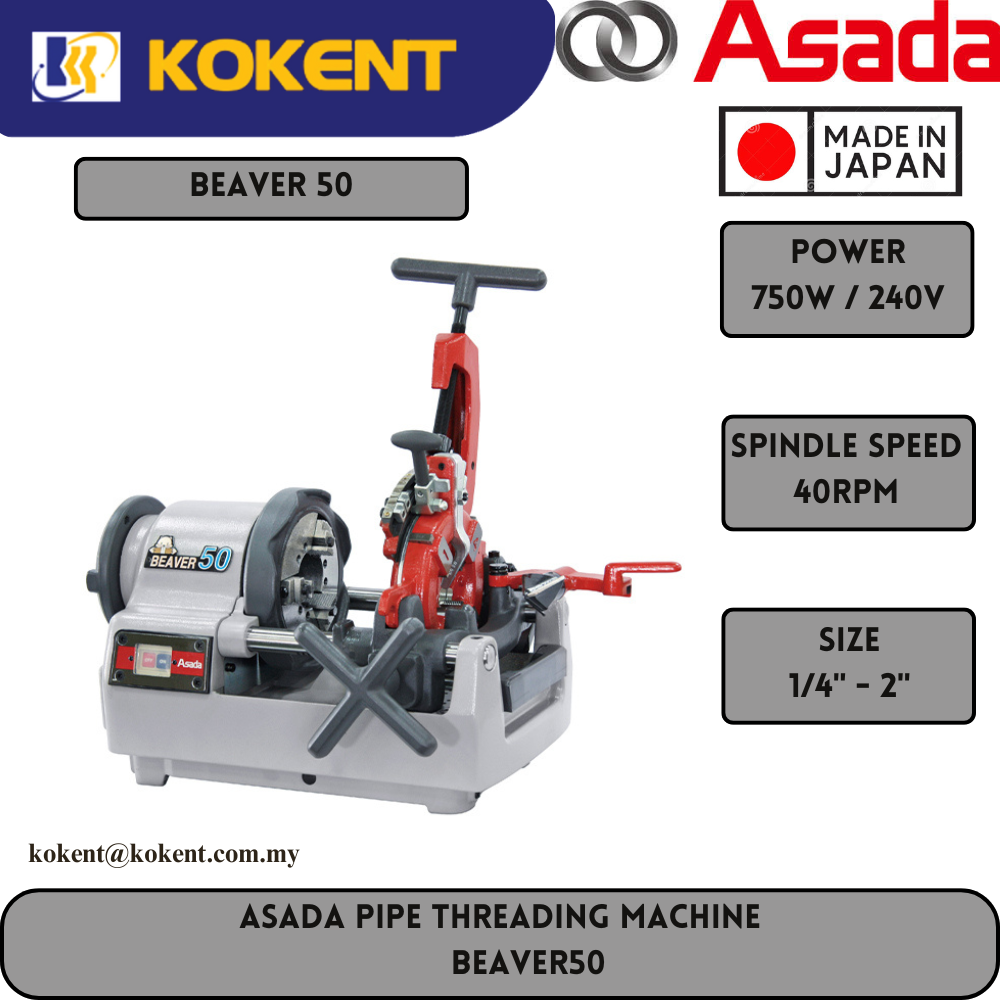

ASADA PIPE THREADING MACHINE BEAVER50

Product Code: BEAVER50.

Availability: Pre Order

Pipe：PT1/4"~2" (PT1/4"～3/8" ※With optional accessories)

Bolt：W3/8"～2"・M10～42 ※With optional accessories

Conduit：C19～51・PF1/2"～2" ※With optional accessories

SPECIFICATIONS

Item	Code No.	Weight	Standard accessories	Threading capacity	Spindle speed	Motor
BEAVER 50 BSPT MANUAL	BE51S	44kg	MANUAL DIE-HEAD： 1/2"～2" DIES： BE1/2"～3/4", BE1"～2" THREADING OIL WHITE 4L (1CAN)	PT1/4"～2"	40min^－1	220-240V, 750W
BEAVER 50 BSPT AUTO	B51AS	44kg	BEAVER AUTO DIE-HEAD： 1/2"～2" DIES： BE1/2"～3/4", BE1"～2" THREADING OIL WHITE 4L (1CAN)	PT1/4"～2"	40min^－1	220-240V, 750W
BEAVER 50 NPT MANUAL	BE51N	44kg	MANUAL DIE-HEAD： 1/2"～2" DIES： BE1/2"～3/4", BE1"～2" THREADING OIL WHITE 4L (1CAN)	PT1/4"～2"	40min^－1	220-240V, 750W
BEAVER 50 NPT AUTO	B51AN	44kg	BAEVER AUTO DIE-HEAD： 1/2"～2" DIES： BE1/2"～3/4", BE1"～2" THREADING OIL WHITE 4L (1CAN)	PT1/4"～2"	40min^－1	220-240V, 750W

Accurate threading

Die-head with automatic profiling system and high durable dies.
Slip-free chucking

Easy-to-grip outer ring and wider jaws grab material firmly.
High power motor

Motor rotation is hard to drop even under poor electric condition.
Superior sharpness & durability

Cutter & reamer blade are designed with most suitable shape.
High durability spindle

Supported by high precision ball bearing.
Stable oil supply

High capacity pump maintains sufficient oil flow even at low rotation.

Pipe Cutter Blade
Carbon Brushes
ROLL GROOVER 640

For on-site grooving works. Can be used with a threading machine.
Legs for Threading Machine
Automatic Die-Head

DIE-HEAD for BEAVER
Manual Die-Head

DIE-HEAD for BEAVER
Dies for Pipe Thread
Dies for Pipe Thread (High Durability)
Dies for Bolt Thread
Dies for Parallel Pipe(Conduit) Thread
Nipplemax
Nipple Chuck
Threading Oil White
Threading Oil Red
Threading Oil Cool
Pipe Support

For accurate threading with long pipes
