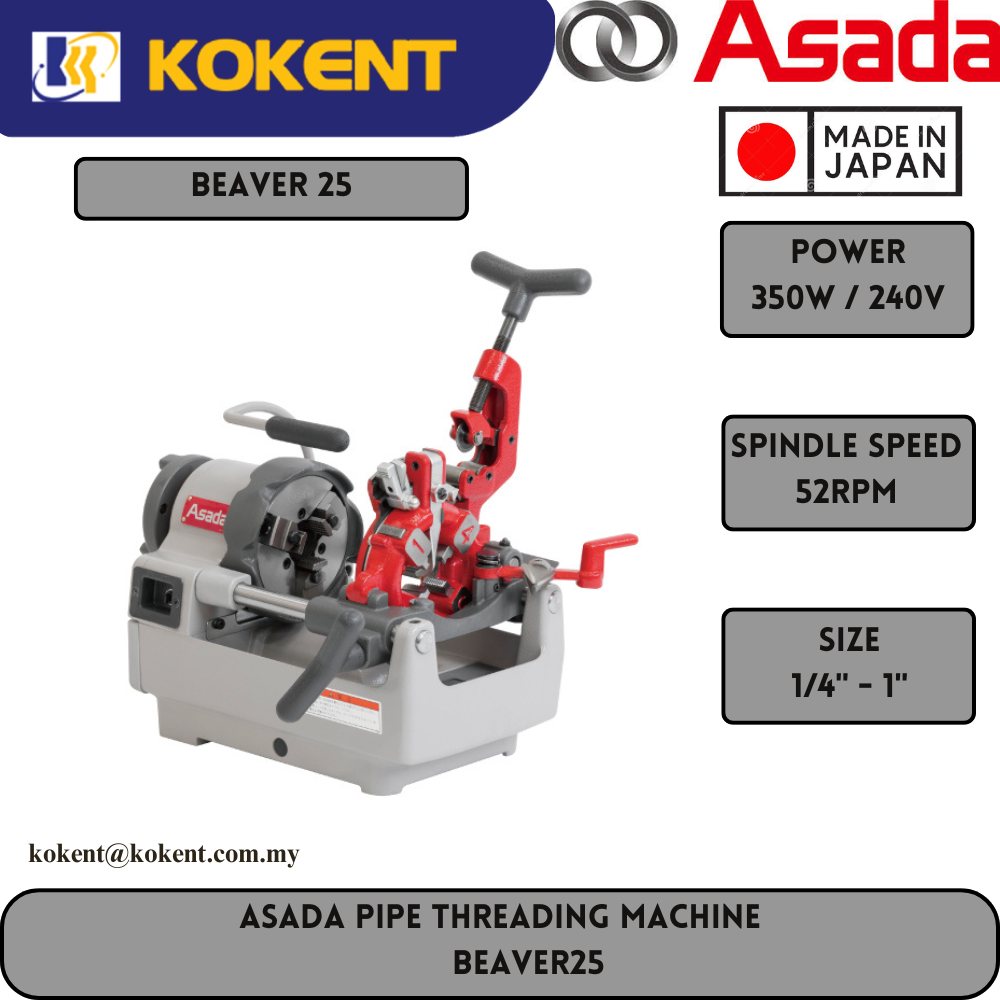

ASADA PIPE THREADING MACHINE BEAVER25
Product Code: BEAVER25
Availability: Pre Order
Pipe：PT 1/4"~1" (PT1/4"～3/8" ※With optional accessories)
Bolt：W3/8"～1"・M10～24 ※With optional accessories
Conduit：C19～25・PF1/2"～1" ※With optional accessories
SPECIFICATIONS
| Item | Code No. | Weight | Standard accessories | Threading capacity | Spindle speed | Motor |
|---|---|---|---|---|---|---|
| BEAVER 25 BSPT 220-230V | BE25S | 19kg | AUTO DIE-HEAD： 1/2"～1" DIES： AM1/2"～3/4", AM1"～1½" THREADING OIL WHITE 1L (1CAN) | PT1/4"～1" | 52min－1 | 220-230V, 350W |
| BEAVER 25 NPT 220-230V | B25SN | 19kg | AUTO DIE-HEAD： 1/2"～1" DIES： AM1/2"～3/4", AM1"～1½" THREADING OIL WHITE 1L (1CAN) | PT1/4"～1" | 52min－1 | 220-230V, 350W |
| BEAVER 25 BSPT 240V | BE25D | 19kg | AUTO DIE-HEAD： 1/2"～1" DIES： AM1/2"～3/4", AM1"～1½" THREADING OIL WHITE 1L (1CAN) | PT1/4"～1" | 52min－1 | 240V, 350W |
FEATURES
-
Accurate threading
Die-head with automatic profiling system and high durable dies.
-
Slip-free chucking
Easy-to-grip outer ring and wider jaws grab material firmly.
-
High power motor
Motor rotation is hard to drop even under poor electric condition.
-
Superior sharpness & durability
Cutter & reamer blade are designed with most suitable shape.
-
High durability spindle
Supported by high precision ball bearing.
-
Stable oil supply
High capacity pump maintains sufficient oil flow even at low rotation.
-
OPTIONAL ACCESSORIES, CONSUMABLES
-
Pipe Cutter Blade
-
Carbon Brushes
-
Automatic Die-Head for Beaver 25
DIE-HEAD for BEAVER
-
Manual Die-Head for Beaver 25
DIE-HEAD for BEAVER
-
Dies for Pipe Thread, Beaver 25
-
Dies for Parallel Pipe(Conduit) Thread
-
Nipplemax
-
Threading Oil White
-
Threading Oil Red
-
Threading Oil Cool
-
Pipe Support
For accurate threading with long pipes
