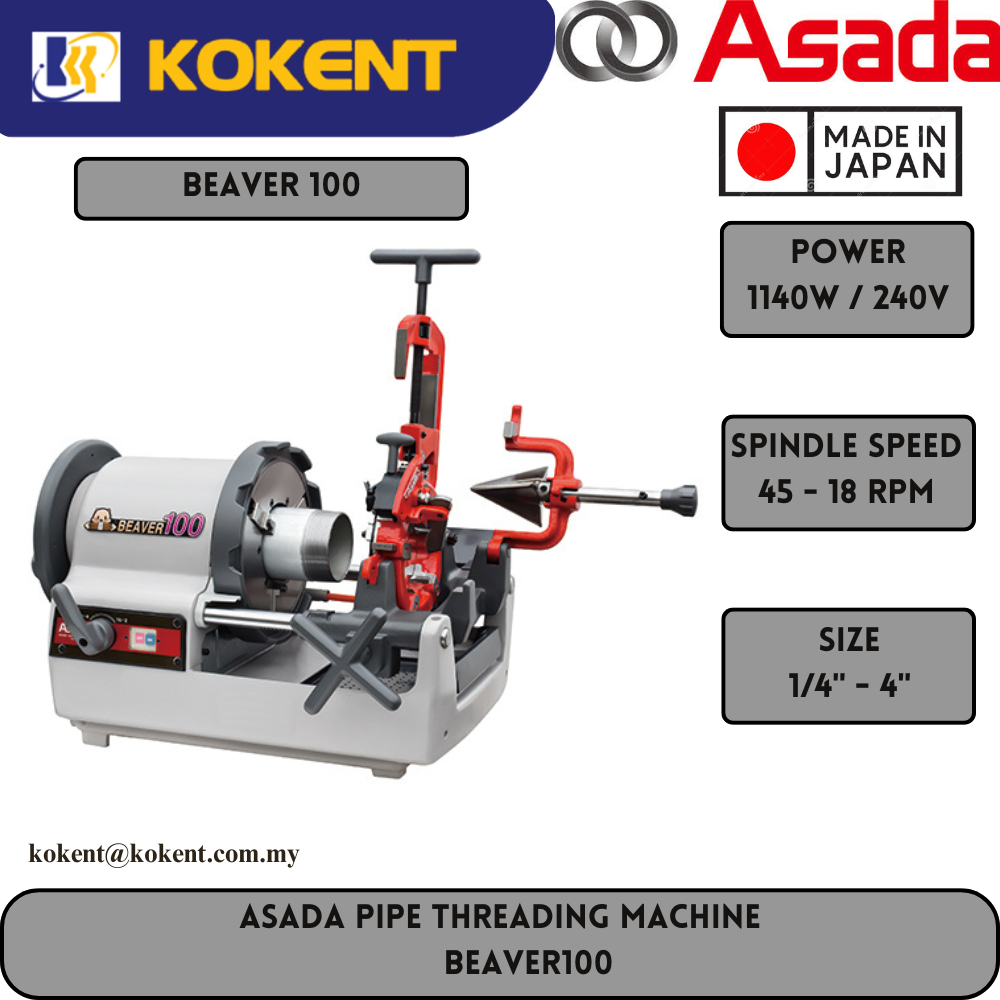

ASADA PIPE THREADING MACHINE BEAVER100
ASADA PIPE THREADING MACHINE BEAVER100

ASADA PIPE THREADING MACHINE BEAVER100

Product Code: BEAVER100
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Pipe：PT1/4"~4" (PT1/4"～3/8" ※With optional accessories)

Bolt：W3/8"～2"・M10～42 ※With optional accessories

Conduit：C19～75・PF1/2"～3" ※With optional accessories



SPECIFICATIONS

Item Code No. Weight Standard accessories Threading capacity Spindle speed Motor
BEAVER 100 BSPT AUTO BE1AS 105kg BEAVER AUTO DIE-HEAD： 1/2"～2", 2½"～4" DIES： BE1/2"～3/4", BE1"～2", AT2½"～4" THREADING OIL WHITE 4L (1CAN) PT1/4"～4" 45・18min－1（2 stage speed) 220-240V, 1,140W
BEAVER 100 NPT AUTO BE1AN 105kg BEAVER AUTO DIE-HEAD： 1/2"～2", 2½"～4" DIES： BE1/2"～3/4", BE1"～2", AT2½"～4" THREADING OIL WHITE 4L (1CAN) PT1/4"～4" 45・18min－1（2 stage speed) 220-240V, 1,140W





FEATURES

  • Accurate threading

    Die-head with automatic profiling system and high durable dies.

    #

  • Slip-free chucking

    Easy-to-grip outer ring and wider jaws grab material firmly.

    #

  • High power motor

    Motor rotation is hard to drop even under poor electric condition.

    #

  • Superior sharpness & durability

    Cutter & reamer blade are designed with most suitable shape.

    #

  • High durability spindle

    Supported by high precision ball bearing. (Hammer chuck side only)

    #

  • Stable oil supply

    High capacity pump maintains sufficient oil flow even at low rotation.

    #



OPTIONAL ACCESSORIES, CONSUMABLES

  • Pipe Cutter Blade

    Pipe Cutter Blade



  • Carbon Brushes

    Carbon Brushes



  • ROLL GROOVER 640

    ROLL GROOVER 640

    For on-site grooving works. Can be used with a threading machine.

  • Legs for Threading Machine

    Legs for Threading Machine



  • Automatic Die-Head

    Automatic Die-Head

    DIE-HEAD for BEAVER

  • Manual Die-Head

    Manual Die-Head

    DIE-HEAD for BEAVER

  • Dies for Pipe Thread

    Dies for Pipe Thread



  • Dies for Pipe Thread (High Durability)

    Dies for Pipe Thread (High Durability)





  • Dies for Bolt Thread

    Dies for Bolt Thread



  • Dies for Parallel Pipe(Conduit) Thread

    Dies for Parallel Pipe(Conduit) Thread



  • Nipplemax

    Nipplemax



  • Nipple Chuck

    Nipple Chuck



  • Threading Oil White

    Threading Oil White



  • Threading Oil Red

    Threading Oil Red



  • Threading Oil Cool

    Threading Oil Cool



  • Pipe Support

    Pipe Support

    For accurate threading with long pipes
