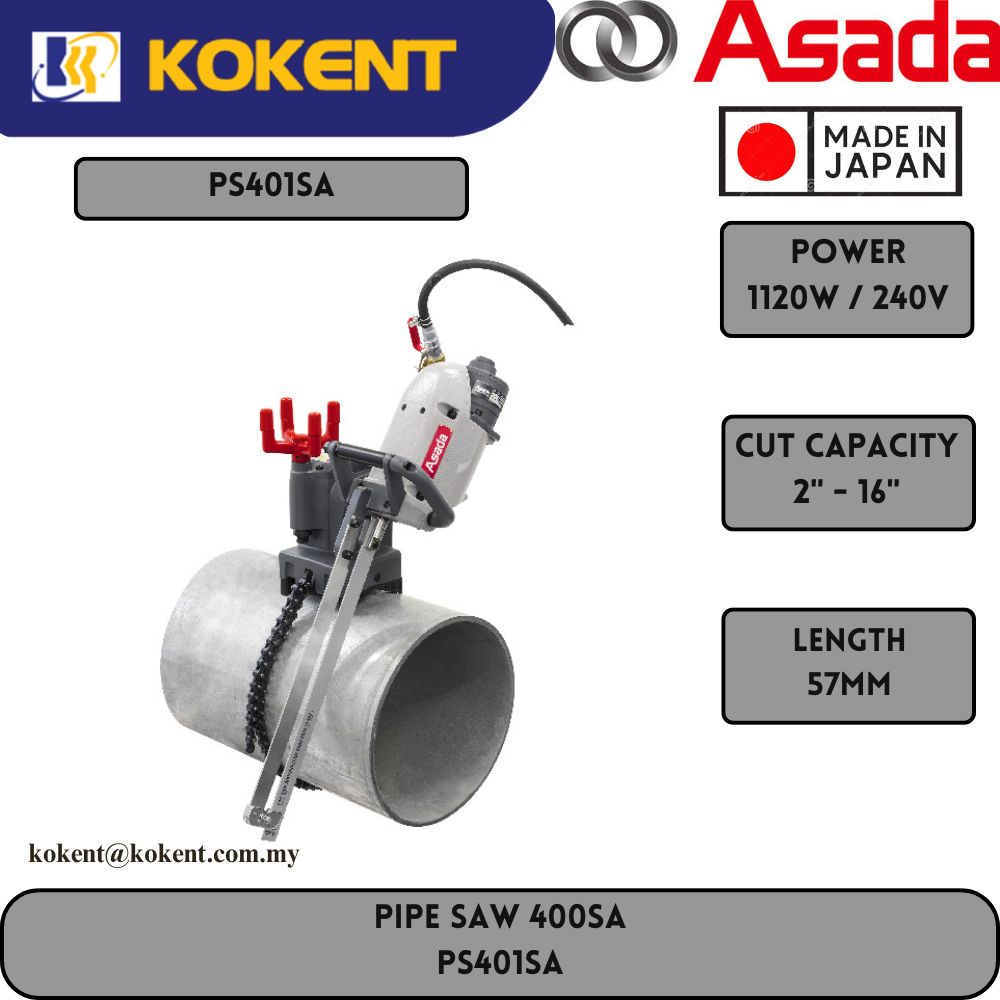

ASADA PIPE SAW 400sa PS401SA
Product Code: PA401SA
Availability: Pre Order
Safety operation without sparks by pneumatic type
Up to 24"with optional accessories
Most suitable for oil & gas field
15% lighter weight than the conventional model
Feed handle enables to cut pipes easily without vibration
Applicable to stainless steel pipe too
SPECIFICATIONS
| Item | PIPE SAW 400SA |
|---|---|
| Code No. | PS401SA |
| Cutting capacity Steel pipe | 2～16"(24" optional） |
| Cutting capacity Stainless steel pipe | 2～12"(Thickness: 9mm or less） |
| Motor | Air motor 1120W |
| Stroke length | 57ｍｍ |
| No load stroke speed | 40～400 times/min |
| Weight | 21kg |
| Standard accessories | SAW BLADE HSS 380mm, 490mm (each 1pce), GUIDE PLATE 8", 12", MAGNET-ATTACHED WEDGE(L), RATCHET WRENCH, AIR MAINTENANCE UNIT, CASE 2pcs |
FEATURES
-
Cut 24" steel pipe
Maximum cutting capacity is up to 24" with optional accessories
-
Space-saving
Minimize cutting space at repairing and dismantling of installed pipes.
-
Adjustable cutting speed
Stroke speed can be controlled by air valve. Can cut steel pipe, stainless steel pipe, cast iron pipe and resin pipe.
-
Easy operation
Feed handle reduces vibration significantly during cutting operation.
