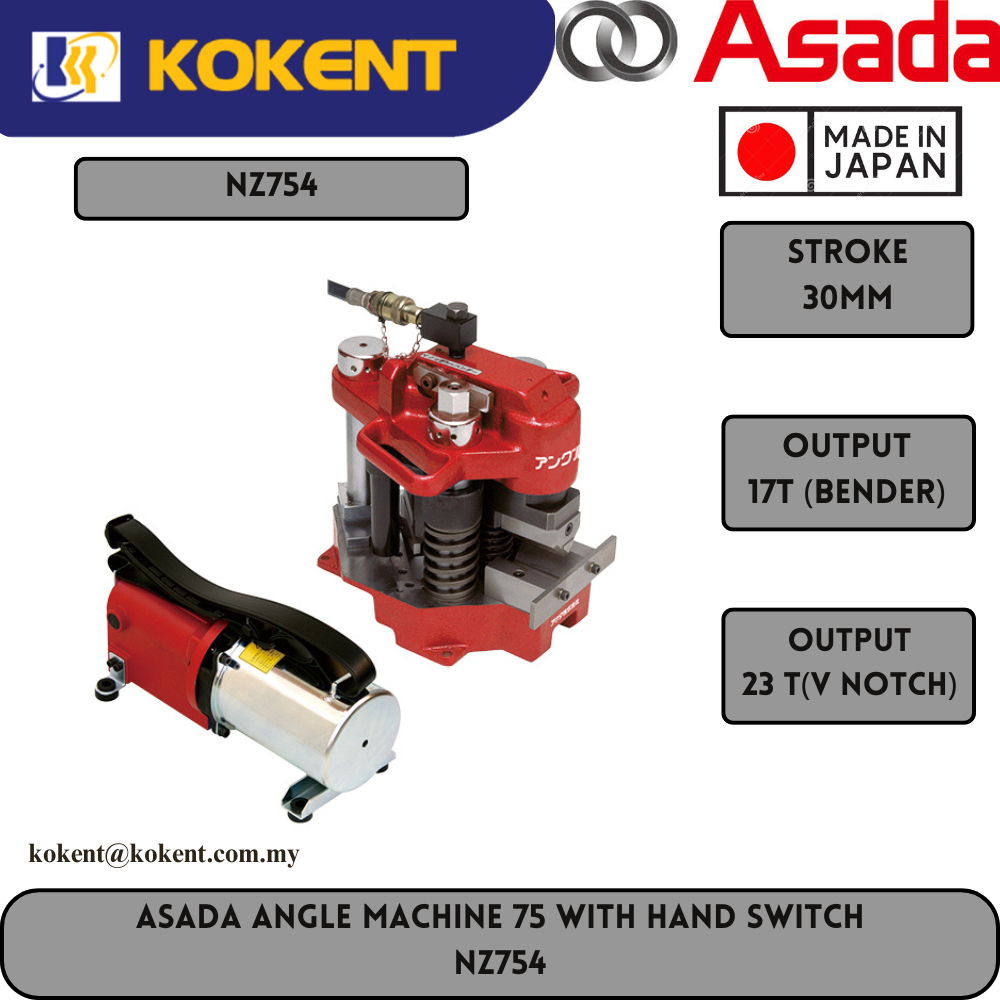

ASADA ANGLE MACHINE 75 WITH HAND SWITCH NZ754

Product Code: NZ754

Availability: In Stock

Can process bending, V notch, corner cut without changing tools.

Applicable to stainless steel angle bar up to 75×75×6mm (with stainless steel model)

Main unit and hydraulic pump unit are separated for easy transport.

Item	ANGLE MACHINE 75 with HAND SWITCH	ANGLE MACHINE 75 with FOOT SWITCH	ANGLE MACHINE 75 BODY UNIT	ANGLE MACHINE 75 BODY UNIT for STAINLESS STELL
Code No.	NZ754	NZ755	NZ761	NZ785
Applicable material	Steel	Steel	Steel	Steel, Stainless steel
Bending capacity	SS400：75×75×6mm／SUS304：75×75×6mm(※)	SS400：75×75×6mm／SUS304：75×75×6mm(※)	SS400：75×75×6mm／SUS304：75×75×6mm(※)	SS400：75×75×6mm／SUS304：75×75×6mm(※)
Output	17 t（Bender）・23 t（V notch）	17 t（Bender）・23 t（V notch）	17 t（Bender）・23 t（V notch）	17 t（Bender）・23 t（V notch）
Stroke	30mm	30mm	30mm	30mm
Weight	50kg	50kg	50kg	50kg
Standard accessories	MAIN UNIT（V notch, Bender）, HYDRAULIC PUMP UNIT FL, HAND SWITCH	MAIN UNIT（V notch, Bender）, HYDRAULIC PUMP UNIT FL, FOOT SWITCH	MAIN UNIT（V notch, Bender）	MAIN UNIT（V notch, Bender）

Can process 6 different works with standard accessories

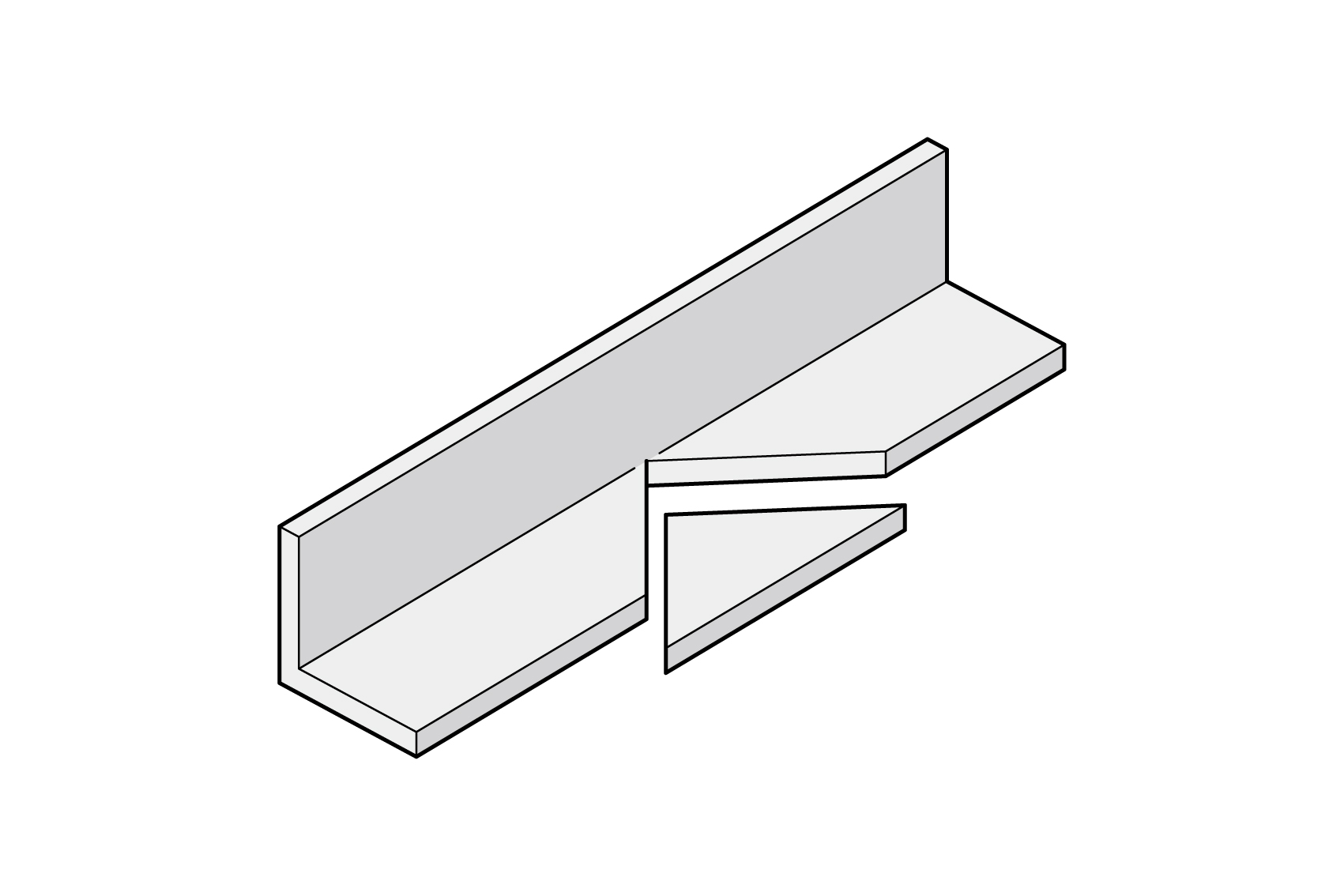

V notch 90°
Can process 6 different works with standard accessories

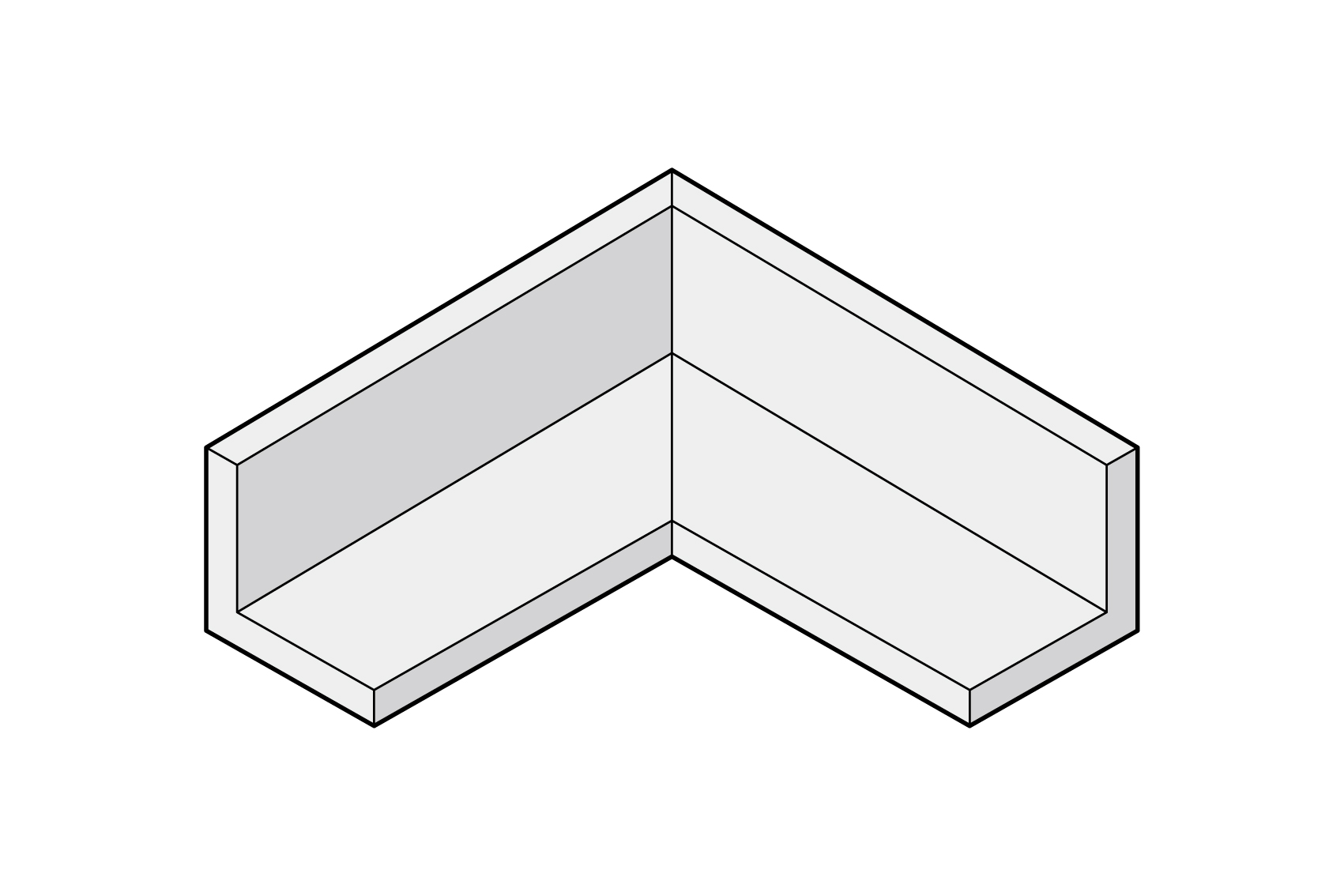

Angle bar bender. ※ Min bend: 200mm corner.
Can process 6 different works with standard accessories

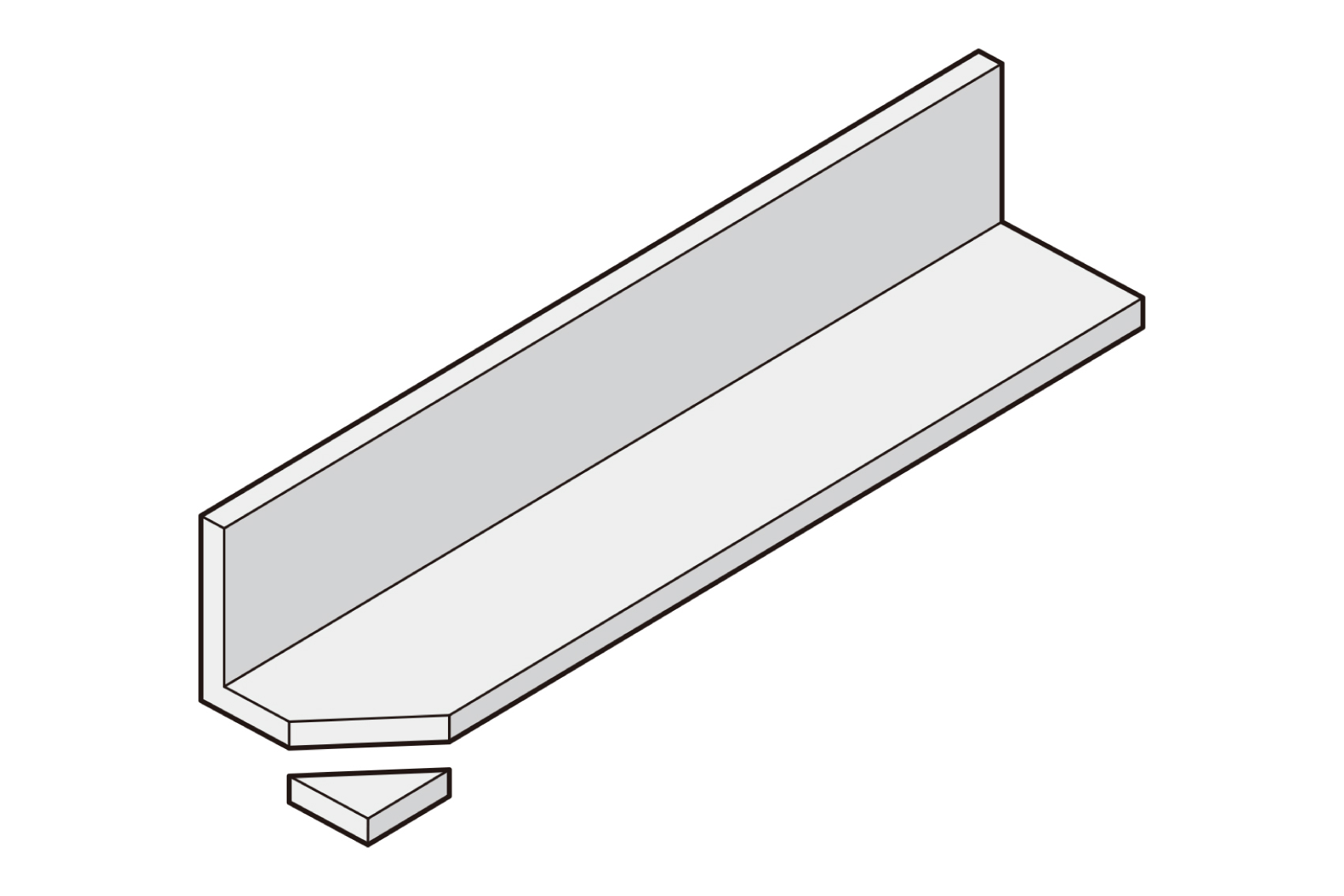

Corner relief.
Can process 6 different works with standard accessories

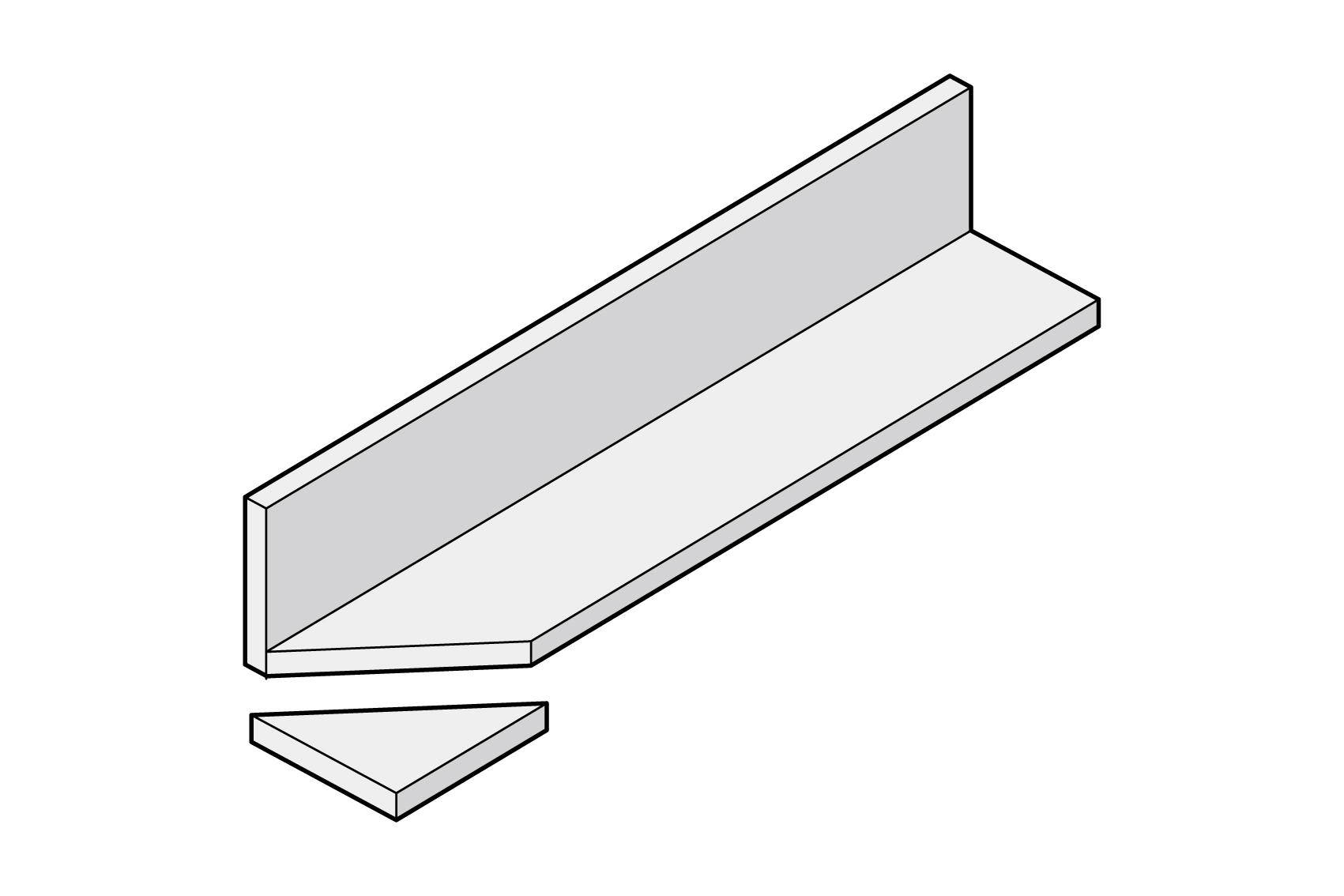

Corner cut 45°.
Can process 6 different works with standard accessories

Corner cut 90°.
Can process 6 different works with standard accessories

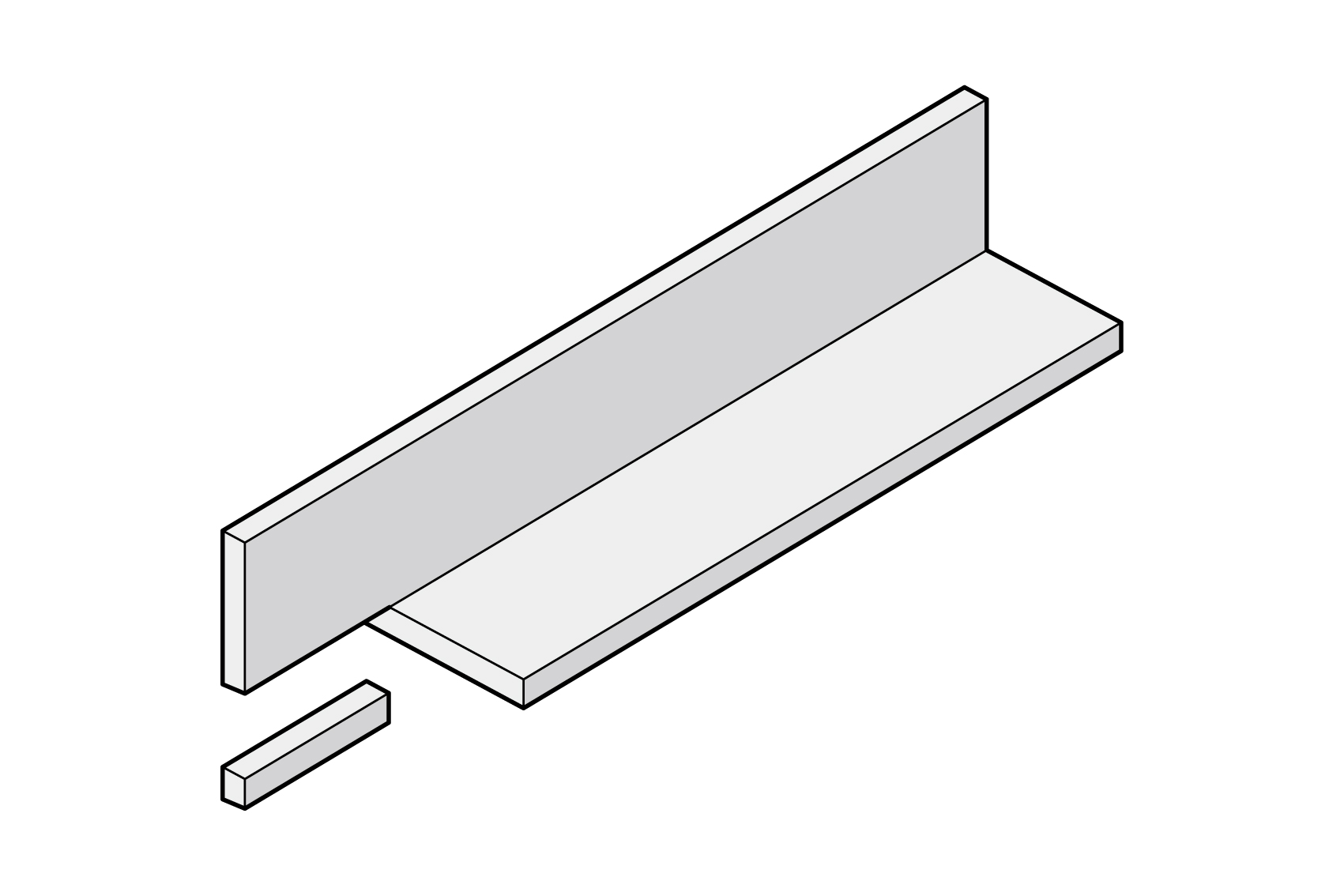

Edge cut.
Can process 6 different works with standard accessories

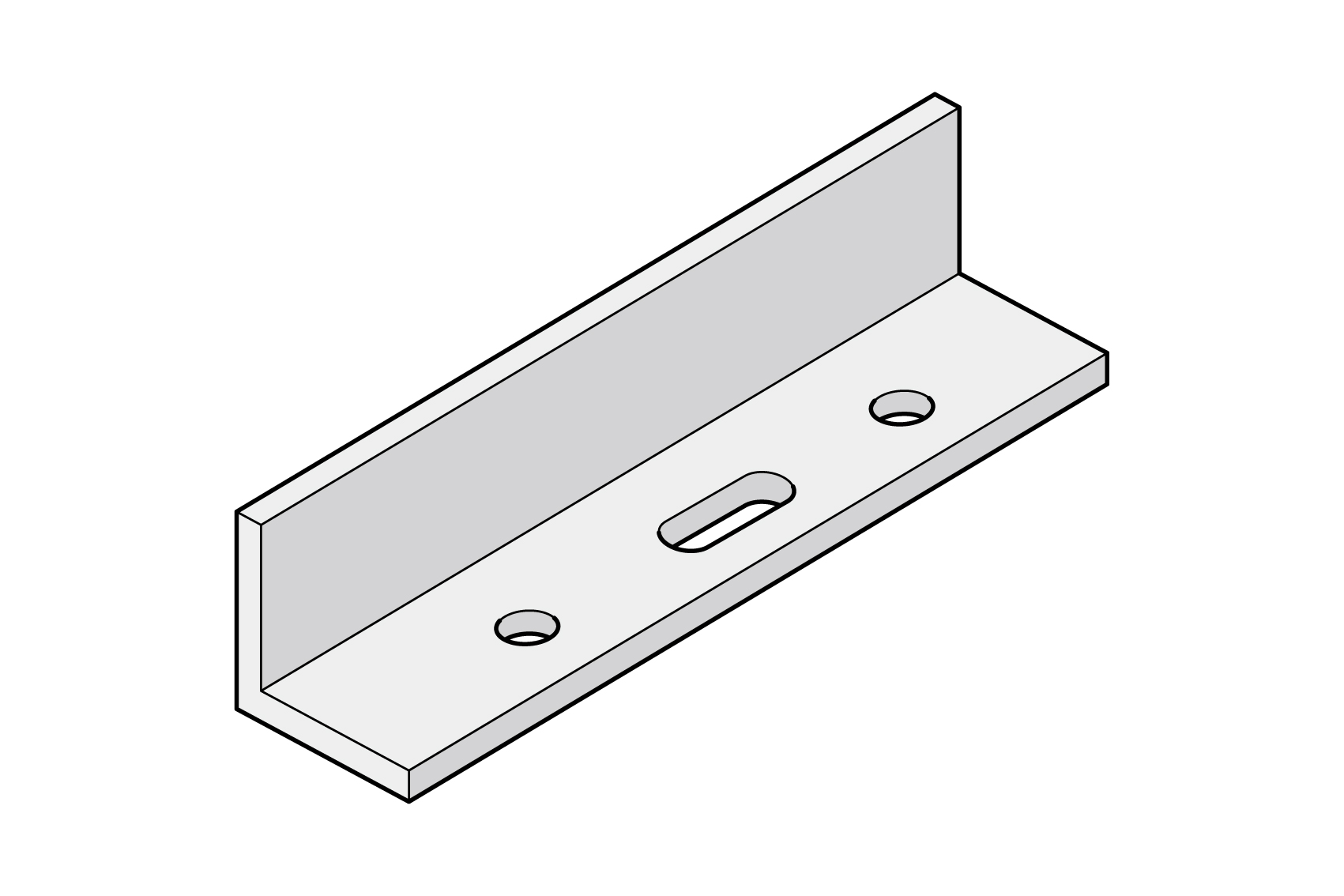

Puncher (with optional accessories)
