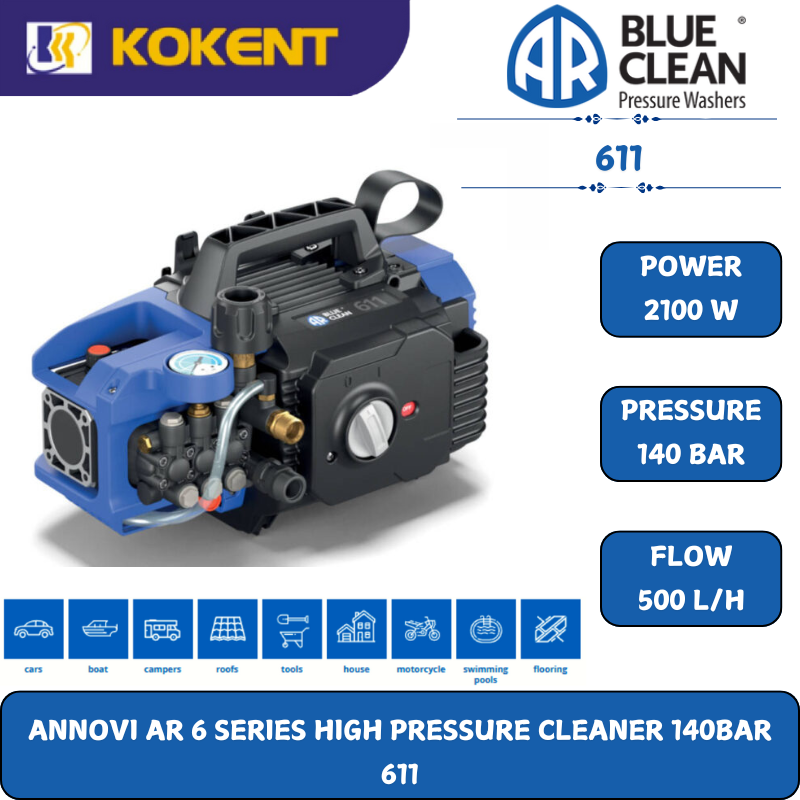

ANNOVI AR 6 SERIES HIGH PRESSURE CLEANER 140BAR 611

Description

AR Blue Clean 611 is the professional high performance cold water high pressure washer. The technical properties and its heavy-duty components, such as the powerful induction motor and the 3-cylinder pump with tempered steel pistons and connecting rod system, make the AR Blue Clean 611 perfect for craftsmen and for professionals working in the construction and agricultural sectors, areas that require machines that can take on large surfaces and withstand long work shifts.

The machine is fitted with a pressure regulator so that it can be best adapted to every cleaning situation and requirement, as well as a pressure gauge indicating the pressure reached.

The AR Blue Clean 611 high pressure washer is characterised as being highly versatile. It can in fact be used in 3 different configurations:

• stand alone;
• installed on the trolley kit (purchased separately) for greater manoeuvrability even on rough terrain;
• installed with the wall mounting kit (purchased separately) for convenient use and easy storage.

The design of this machine makes maintenance operations particularly easy. The pump valves are inspectable and the oil drain plug is easily accessible.

The professional accessories include a trigger gun with brass thread connection, a metal lance with adjustable jet nozzle and a steel-braided reinforced hose (8 m). The built-in detergent suction system allows soap to be drawn from an external container.

This high pressure washer is equipped with the Total Stop System, a system that automatically shuts down the machine when the gun trigger is released, saving energy and increasing the life of the machine.

The self-priming function allows water to be used directly from a container, such as a tank, without the need for a direct connection to the water supply. To take advantage of this feature, the level difference between the machine’s water inlet and the minimum water level of the tank (head) must not exceed 0.5 m. It is even better if the water level in the tank is at or above the high pressure washer’s water inlet level.

TECHNICAL PROPERTIES

Pump Details

HJRS-A

• Triplex pump with ceramic pistons and connecting rod system with aluminium pump head

• Automatic by-pass valve with pump head pressure discharge

• Single-phase induction motor with thermal protection

• Remote control for total shut-down of high pressure washer

• Inlet water suction from tank by self priming function
