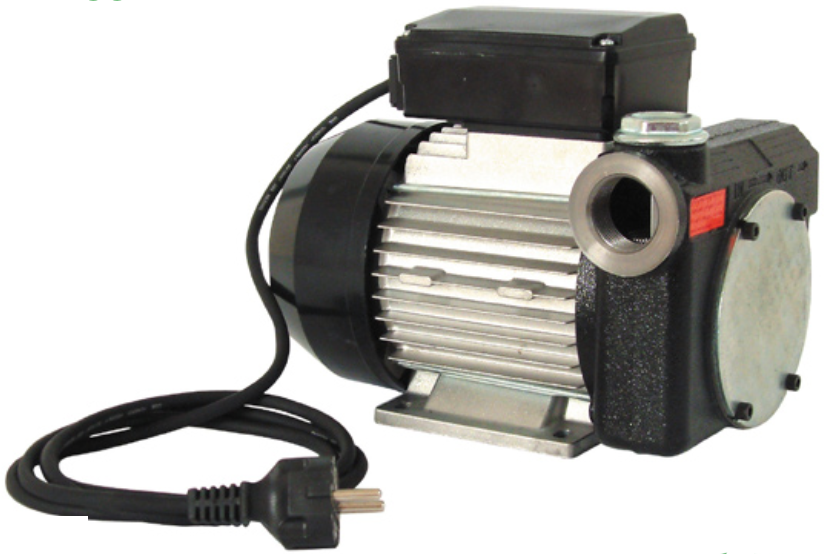

Adam Pump for Diesel Transfer 80L/min, 2.5Bar, 550W PA2-80
Adam Pump for Diesel Transfer 80L/min, 2.5Bar, 550W PA2-80

Adam Pump for Diesel Transfer 80L/min, 2.5Bar, 550W PA2-80

Product Code: PA2-80 (Made in Italy)
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Model: PA2-80 (Made in Italy)
Diesel transfer pump with AC power.

Price inclusives 6% GST.

Features

  • Robust design with motor weather protection rating IP55.
  • With built in bypass valve.
  • Materials of component:
    a) Pump Housing: Cast iron
    b) Rotor: Stainless steel
    c) Vanes: POM
    d) Seal for shaft: HNBR
    e) Other seal: NBR
  • With built in filter.

Specifications

Voltage AC 230V, 50Hz
Maximum Current  3.5 A
On/Off Switch Yes
Length of Cable 2 m
Duty Cycle S2 30 min
Maximum Flow Rate  80 L/min
Maximum Pressure 2.5 Bar
Vacuum Height 2 m
Inlet x Outlet Port 1" x 1"
Operating Temperature  -20°C to 50°C
Approved Fluids Diesel
Forbidden Fluids Gas, Alcohol, Water
Sound Level 80 dB
Weight 13 kg

Standard Accessories Included

  • PA pump only
