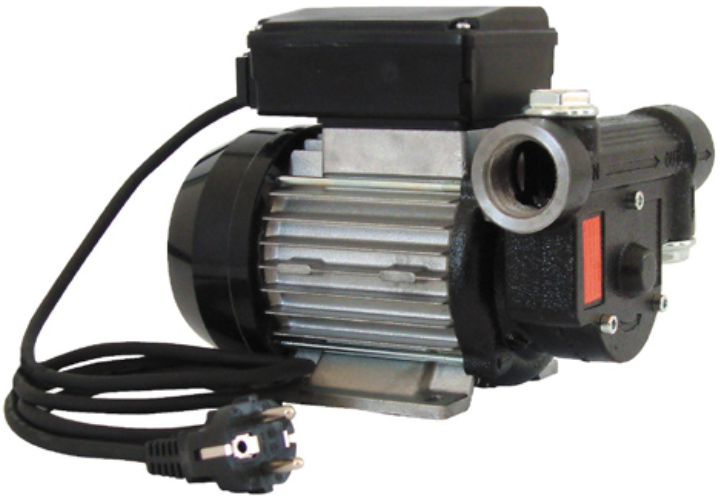

Adam Pump for Diesel Transfer 70L/min, 2Bar, 370W PA1-70
Adam Pump for Diesel Transfer 70L/min, 2Bar, 370W PA1-70

Adam Pump for Diesel Transfer 70L/min, 2Bar, 370W PA1-70

Product Code: PA1-70 (Made in Italy)
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Model: PA1-70 (Made in Italy)
Diesel transfer pump with AC power.

Price inclusives 6% GST.

Features

  • Robust design with motor weather protection rating IP55.
  • With built in bypass valve.
  • Materials of component:
    a) Pump Housing: Cast iron
    b) Rotor: Stainless steel
    c) Vanes: POM
    d) Seal for shaft: HNBR
    e) Other seal: NBR
  • With built in filter.

Specifications

Voltage AC 230V, 50Hz
Maximum Current  1.5 A
On/Off Switch Yes
Length of Cable 2 m
Duty Cycle S2 30 min
Maximum Flow Rate  70 L/min
Maximum Pressure 2 Bar
Vacuum Height 2 m
Inlet x Outlet Port 1" x 1"
Operating Temperature  -20°C to 50°C
Approved Fluids Diesel
Forbidden Fluids Gas, Alcohol, Water
Sound Level 80 dB
Weight 8 kg

Standard Accessories Included

  • PA pump only
