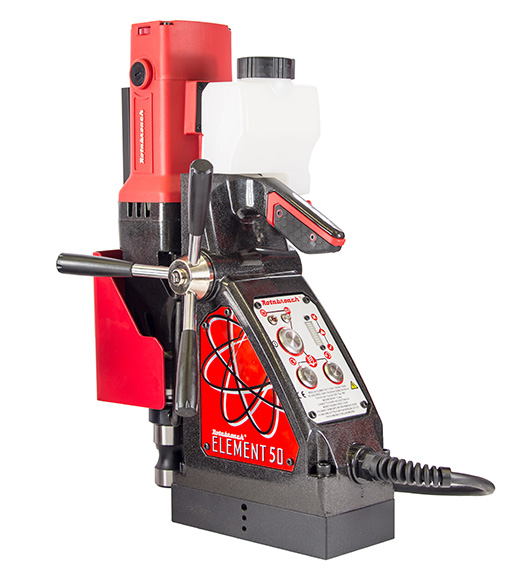

Element 50

  • The ‘Element 50’ is one of Rotabroach’s most versatile machines.
  • Small in size, with reversible features to allow tapping.
  • Suitable for drilling up to 50mm diameter by 50mm depth.
  • Dual motor protection system prolonging the machines life..

Model Number Element 50/1 / Element 50/3
Motor Specification 110V 1500W / 230V 1500W
No Load RPM Low Gear: 100-265 RPM



High Gear: 200-500 RPM
Max Hole Cutting Capacity ø50 x 50mm Deep – 23mm with MT Shank Drill
Overall Dimensions Height: 460mm / Width: 195mm with Capstan / Length: 400mm with Guard
Machine Weight 15.8kg
Magnetic Adhesion 13,500N
Magnet Size 200mm x 98mm
Safety Features Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch
