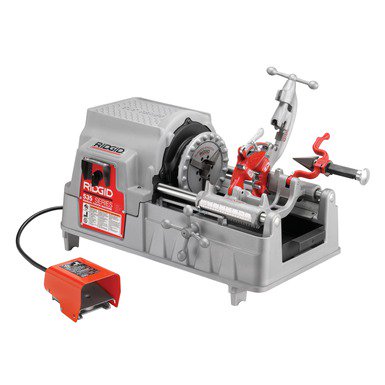

RIDGID Model 535 Threading Machine
RIDGID Model 535 Threading Machine

RIDGID Model 535 Threading Machine

Product Code: Model 535
Availability: In Stock
Loading ...
017 432 8850012 387 8850
Share:

Features

  • Large 1.75 gallon (6.6 L) oil tray.
  • Large chip tray.
  • Generous top cover for keeping tools and fittings handy.
  • High clearance carriage makes threading easier.
  • Speed chuck with rocker-action jaws centers and grips work piece instantly.
  • Can be used with geared Models 141 and 161 threaders.
  • Uses Model 816/817 semiautomatic, Model 815A self-opening or Model 811A quick-opening die heads.
  • Length gauge for quick, accurate cut-off.

Accessories

  • Die heads and dies.
  • Die head racks.
  • Three models of stands available.
  • Thread cutting oil.
  • Nipple chuck.

Specifications

Pipe Capacity 1/8"-2" (3mm-50mm) 2 1/2"-4" (62mm-100mm), 4"-6" (100mm-150mm) with 141 and 161 geared threaders.
Bolt Capacity 1/4"-2" (6mm-50mm).
Switches Forward/off/reverse and integral foot switch.
Chuck Speed Chuck™ with three replaceable rocker-action jaw inserts.
Rear Centering Device Cam-action, turns with chuck.
Cutters Self-centering, full-floating. Two models available: Standard Model 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm). Optional Model 821 Blade-Type cutter, pipe capacity 1/2"-2" (12mm-50mm). See ordering chart.
Reamer 5-flute cone, RH, 1/8"-2" (3mm-50mm).
Oil Pump Self-priming gerotor oil pump.
Reamers RH/LH combination reamer available.
