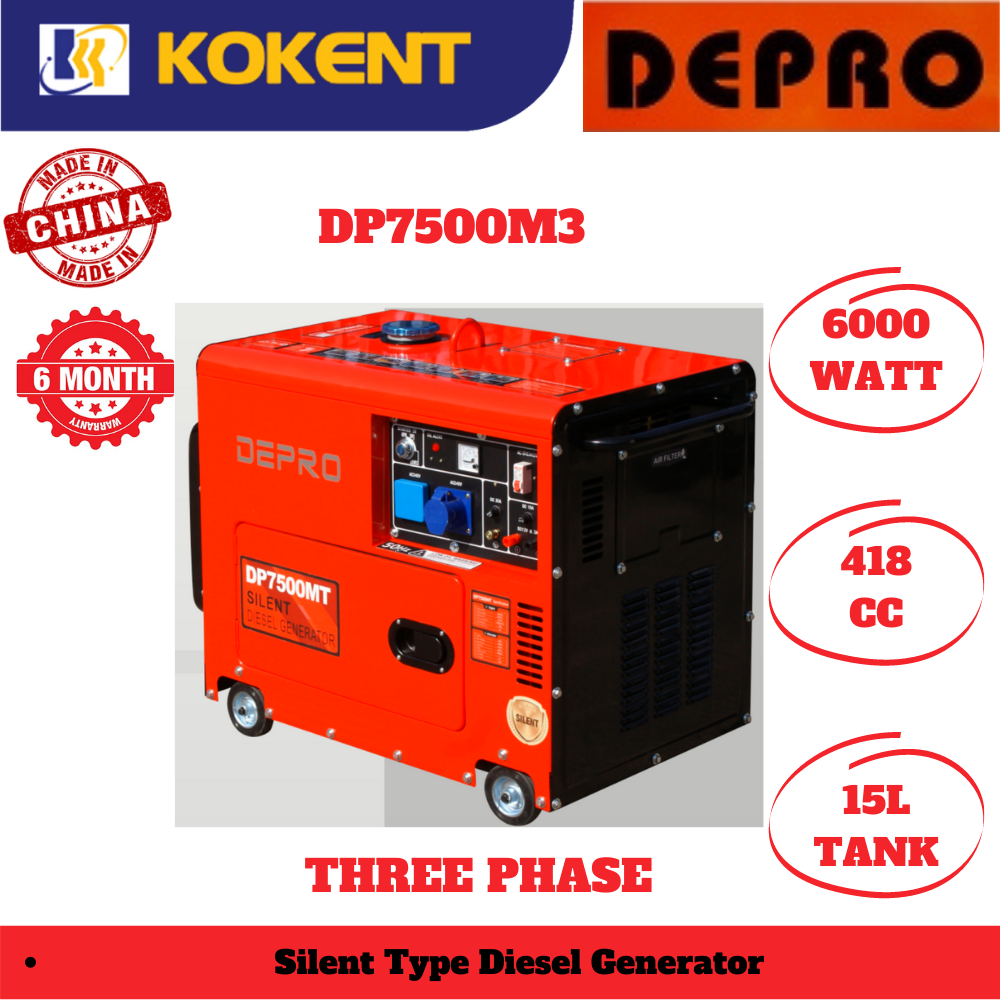

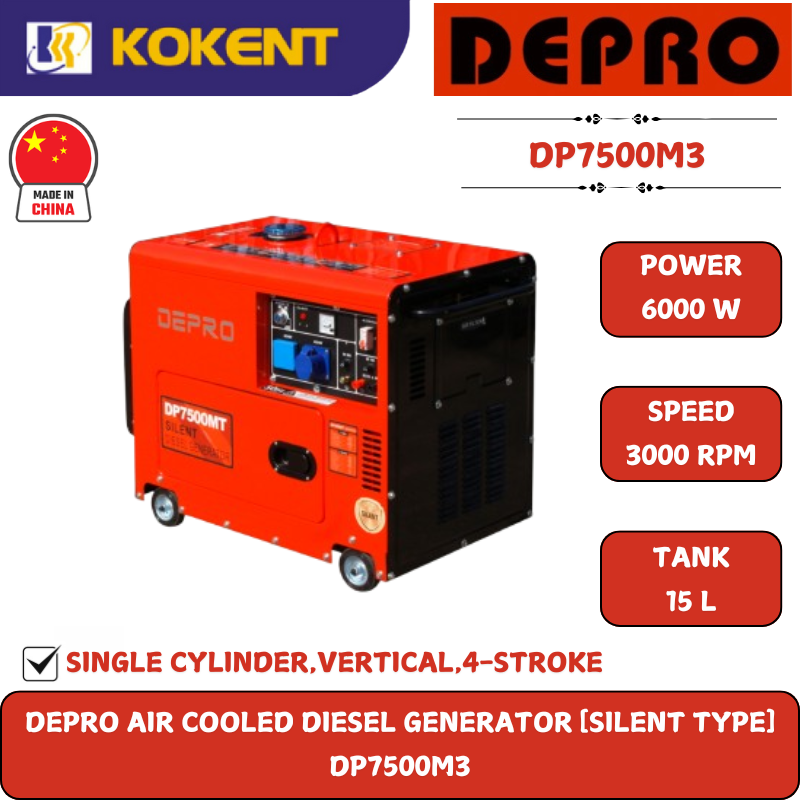

Depro Air Cooled Diesel Generator (SILENT TYPE) DP7500M3

Depro Air Cooled Diesel Generator (SILENT TYPE) DP7500M3
Depro Air Cooled Diesel Generator (SILENT TYPE) DP7500M3

Depro Air Cooled Diesel Generator (SILENT TYPE) DP7500M3

Product Code: DP7500M3
Availability: In Stock
Loading ...
Share:
Model DP7500M3
Rated Frequency 50
Rated Output (kVA) 5.63
Max.output (kVA) 6.25
Rated voltage (v) 240/415
Rated rotation speed (r/min) 3000
Phase No Single Phase
Power factor (cos) 0.8
Insulation Grade F
Pole Number 2
Excitation mode Self-excitation & constant voltage (AVR)
DC12V output Connection pole output
Stucture type Silent Type
Engine Model DP186
Engine type Single cylinder,Vertical,4-Stroke,Direct Injection
Cylinder No Bore x stroke 1-86x75 mm
Displacement (ml) 418
Rated power [kW (r/min)] 5.7/3000
Compression ratio  19:01
Lubrication system Pressure splashed
Starting system Electric start
Lube oil brand CD grade or SEA10W-30,15W-40
Lube capacity (L) 1.65
Battery Capacity (v-Ah) 12V 30AH
Fuel tank capacity (L) 15
